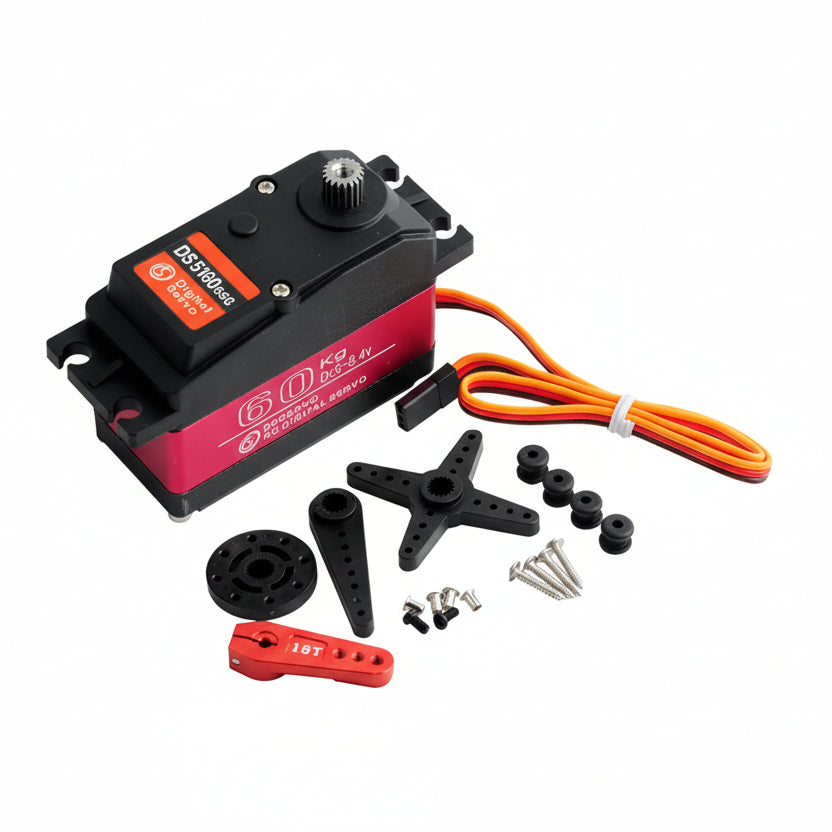

DS5160 Metal Gear Servo Motor – 60kg.cm Torque, 270° Rotation

The DS5160 is a high-quality servo motor and generates torque up to 60kgs. Suitable for high torque applications like Robot Arms, Grippers, Controlling Flaps in RC Planes, Steering Control in RC Cars, or as a generic mechanical actuator.

The Improved DS5160 Model comes with a higher torque and speed. These servos come with metal gear and rugged construction.

They offer High reliability, good stability, easy installation, Low noise, minimum vibration, smooth operation & long life.

• CNC aluminum middle Shell for rugged use
• Dual ball bearings for smooth operation and long life
• High-performance digital standard servo offers higher accuracy compared to standard servos
• High-precision metal gears with hard anodizing for high-torque applications

• Model: DS5160 60KG
• Operating Voltage: 6.0-8.4V DC
• Angle: 270 degree
• Operating Speed @ 6V: 0.17 sec/60°
• Operating Speed @ 7.4V: 0.15 sec/60°
• Operating Speed @ 8.4V: 0.13 sec/60°
• Stall Torque @ 6.0V: 58 kg/cm
• Stall Torque @ 7.4V: 65 kg/cm
• Stall Torque @ 8.4V: 70 kg/cm
• Signal Dead Band: 3μs
• Working frequency: 1520μs / 333hz
• Gear Type: Copper & Aluminum
• Bearing: Double bearing
• Gear: 18T
• Size: 65*30*48mm
• Weight: 162 gm
