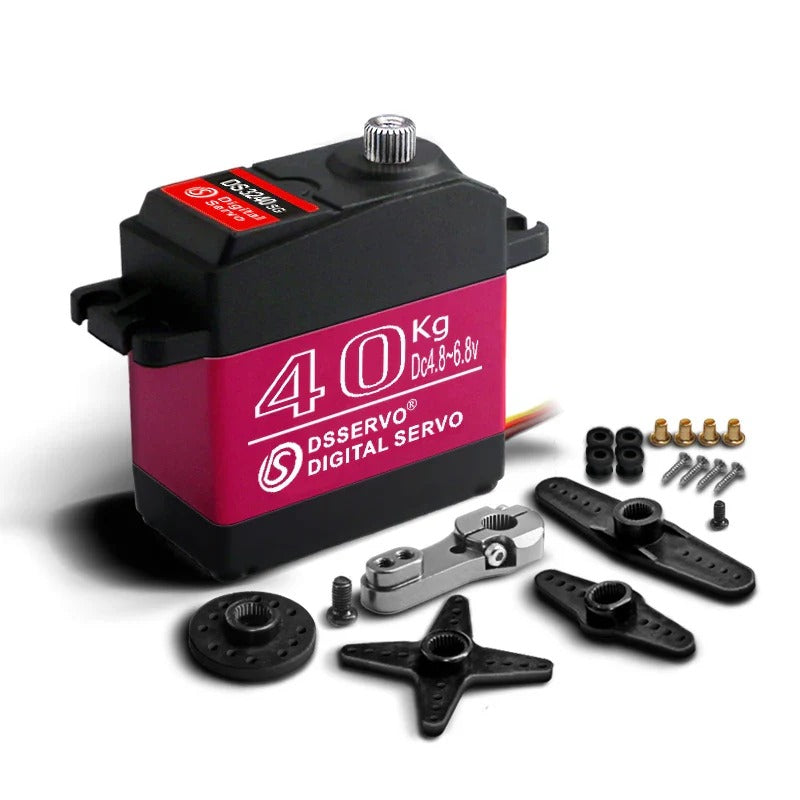

DS3240 Metal Gear Servo Motor – 40kg.cm Torque, 270° Rotation

The DS3240 is a high-quality servo motor and generates torque up to 40kgs. Suitable for high torque applications like Robot Arms, Grippers, Controlling Flaps in RC Planes, Steering Control in RC Cars, or as a generic mechanical actuator.

The Improved DS3240 Model comes with a higher torque and speed compared to the generic DS3240. These servos come with metal gear and waterproof construction. They are IP66-rated for water and dust protection.

• Operating Voltage: 4.8 ~ 6.8V DC
• Torque Digital Servo Stall Torque (5V): 39.5 kg/cm (263.8oz/in)
• Stall Torque (6.8V): 34.5kg/cm (298.5 oz/in)
• Speed : 0.2 sec/60°(5V) / 0.17 sec/60°(6.8V)
• Signal Dead Band: 3μs
• Weight: 58g±2g
• Gear Type: Copper & Aluminum
• Working frequency: 1520μs / 333hz
