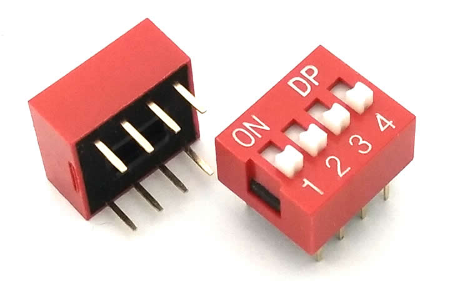

DIP Switch – 4 Position 2.54mm Pitch (2 Pack)

The DIP Switch – 4 Position is a compact manual switching component designed for configuration and control in electronic circuits and embedded systems. It features four independent switches in a standard DIP package with 2.54 mm pin spacing for direct breadboard and PCB compatibility. Built for reliable operation, each switch provides stable ON/OFF states suitable for digital input selection. The durable housing ensures consistent performance during repeated use. Ideal for prototyping, circuit configuration, and microcontroller-based applications.

• 4-position independent switch configuration

• 2.54 mm standard pin spacing

• Breadboard-compatible DIP package

• Through-hole mounting design

• Stable ON/OFF switching mechanism

• Compact and lightweight structure

• Durable plastic housing

• Low contact resistance design

• Suitable for digital signal control

• Easy manual operation

• Reliable switching lifecycle

• Clearly marked switch positions

• Number of Switches: 4

• Switch Type: SPST (Single Pole Single Throw)

• Pin Pitch: 2.54 mm

• Mounting Type: Through-hole

• Rated Voltage: 24 V DC

• Rated Current: 25 mA

• Contact Resistance: ≤ 100 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Operating Temperature: -20°C to +70°C

• Housing Material: Plastic

• Actuator Type: Slide

• Package Type: DIP

• Dimensions: Approx. 10 × 10 × 5 mm

• Quantity: 2 pieces
