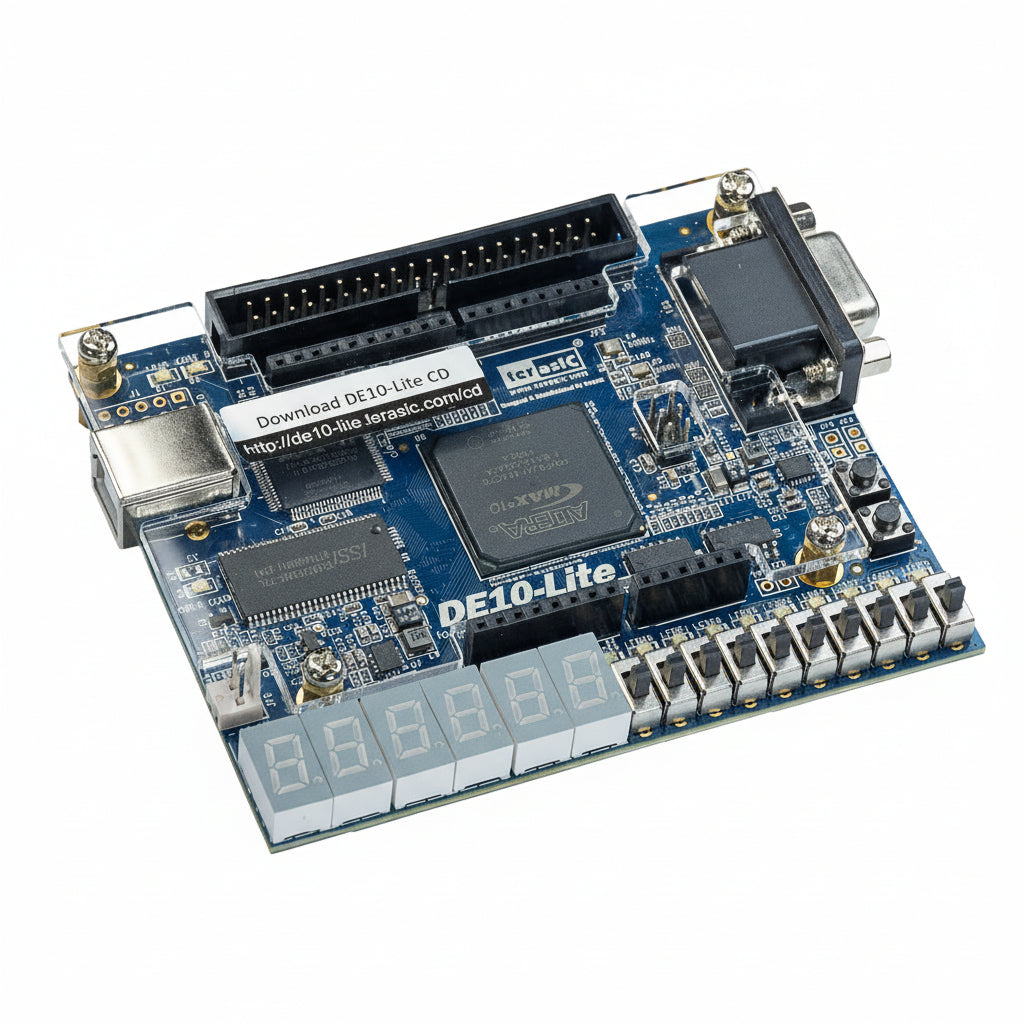

DE10-Lite Development FPGA board

Terasic DE10-Lite is a cost-effective Altera MAX^® 10 based FPGA board. The board utilizes the maximum capacity MAX^® 10 FPGA, which has around 50K logic elements(LEs) and on-die analog-to-digital converter (ADC). It features on-board USB-Blaster, SDRAM, accelerometer, VGA output, 2x20 GPIO expansion connector, and an Arduino UNO R3 expansion connector in a compact size. The kit provides the perfect system-level prototyping solution for industrial, automotive, consumer, and many other market applications.

The DE10-Lite kit also contains lots of reference designs and software utilities for users to easily develop their applications based on these design resources.

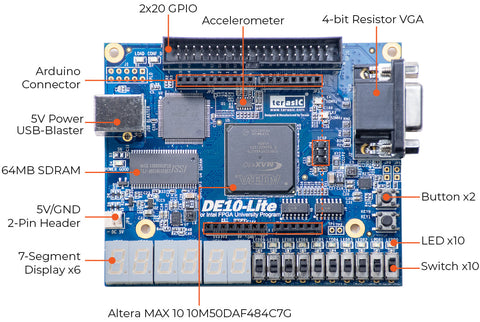

This board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects. The following hardware is provided on the board:

• MAX^® 10 10M50DAF484C7G Device
• Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
• 50K programmable logic elements
• 1,638 Kbit M9K Memory
• 144 18 × 18 Multiplier
• 4 PLLs

• On-Board USB Blaster (Normal type B USB connector)

• 64MB SDRAM, x16 bits data bus

• Accelerometer

• One 2x20 GPIO Connector(voltage levels: 3.3V)
• Arduino Uno R3 Connector, including six ADC channels.

• 4-bit Resistor VGA

• 10 LEDs
• 10 Slide Switches
• 2 Push Buttons
• Six 7-Segments Display

• 5V DC input
