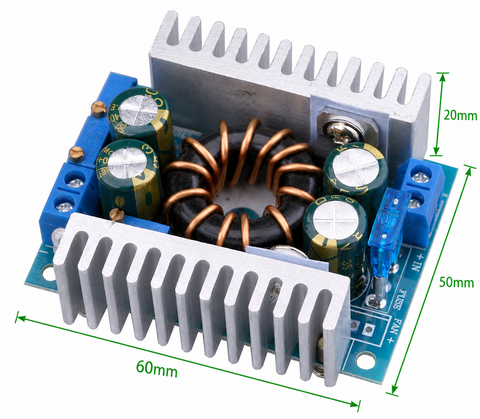

DC-DC 150W Boost Converter 6A 10–32V to 12–35V Module

The DC-DC 150 W Boost Converter 6 A (10–32 V to 12–35 V) Module is a step-up voltage regulator designed to increase DC input voltage to a higher adjustable DC output. It supports an input range of 10–32 V DC and provides an adjustable output from 12–35 V DC with output current capability up to 6 A under appropriate operating conditions. The module achieves conversion efficiency of up to 94%, enabling efficient power transfer in medium- to high-power applications. It is suitable for battery systems, LED power applications, industrial electronics, and embedded DC power projects. For sustained high-current operation, the use of additional heat dissipation is recommended.

• DC-DC Boost Topology: Step-up switching converter for higher DC output voltage
• Input Voltage Range: 10–32 V DC
• Output Voltage Range: Adjustable 12–35 V DC
• Output Current Capability: Up to 6 A under appropriate thermal conditions
• Power Rating: Up to 150 W maximum output power
• Conversion Efficiency: Up to 94% under optimized operating conditions
• Thermal Management: Supports external heatsink installation for sustained high-current operation
• Protection Notice: No reverse polarity protection; correct input polarity required

• Module Type | DC-DC step-up (Boost) converter

• Rated Power | 150 W maximum

• Input Voltage Range | 10–32 V DC

• Output Voltage Range | Adjustable 12–35 V DC

• Maximum Output Current | 6 A

• Conversion Efficiency | Up to 94%

• Voltage Adjustment Method | Onboard potentiometer

• Electrical Isolation | Non-isolated converter design

• Thermal Requirements | External heatsink recommended for high-current operation

• Protection Features | No reverse polarity protection

• Application Area | Battery systems, LED power supplies, industrial electronics, and DC power conversion projects

• Module Construction | PCB-based boost converter module for embedded integration
