Raspberry Pi Compute Module 5 IO Board – Development Carrier Board

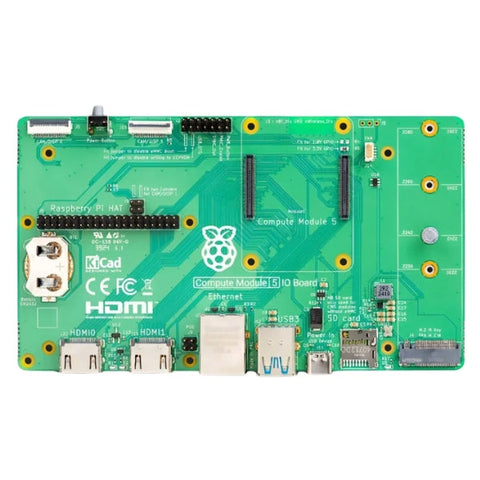

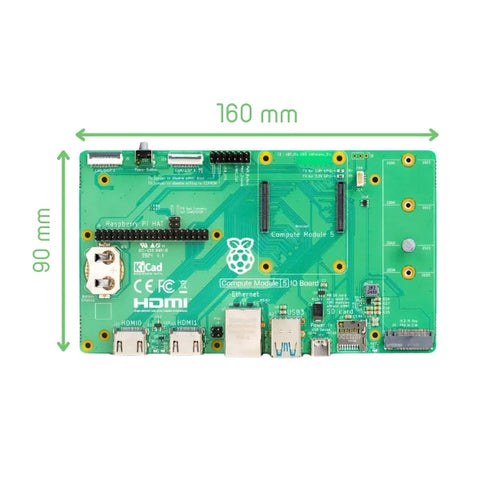

The Raspberry Pi Compute Module 5 IO Board is a carrier board designed to evaluate, develop, and integrate the Compute Module 5 in embedded systems. It provides standard interfaces including HDMI, USB, Ethernet, PCIe, and camera and display connections. The board is engineered for stable operation and full compatibility with Compute Module 5 variants. Its layout supports reliable power delivery and signal integrity during development and testing. Suitable for prototyping, system validation, and embedded hardware development.

• Standard ATX power input support

• Dedicated CM5 edge connector socket

• Multiple USB host ports

• USB device interface support

• MicroSD card slot for booting

• CSI camera ribbon connectors

• DSI display ribbon connectors

• PCIe x1 slot routing support

• Ethernet PHY onboard

• Status and power indicator LEDs

• Hardware reset and boot buttons

• Onboard clock and timing circuitry

• Mounting holes for enclosure integration

• Open-source hardware reference design

• Full compatibility with CM5 variants

• Operating Voltage: 5 V DC

• Power Input: DC jack and ATX power connector

• Power Regulation: Onboard multi-rail power regulators

• Supported Module: Raspberry Pi Compute Module 5

• Processor Support: Dependent on installed Compute Module

• USB Interfaces: USB 3.0 and USB 2.0

• USB Host Ports: Multiple Type-A connectors

• USB Device Mode: Supported

• Display Output: HDMI connectors

• Camera Interfaces: MIPI CSI ribbon connectors

• Display Interfaces: MIPI DSI ribbon connectors

• Expansion Interface: PCIe Gen 2 x1

• PCIe Slot Routing: x1 lane support

• Network Interface: Gigabit Ethernet RJ45

• Ethernet Speed: 10/100/1000 Mbps

• Boot Support: MicroSD card slot

• GPIO Access: Exposed GPIO headers

• Debug Interface: UART debug header

• Operating Temperature: 0 °C to 50 °C
• Board Material: FR-4 PCB
