Description

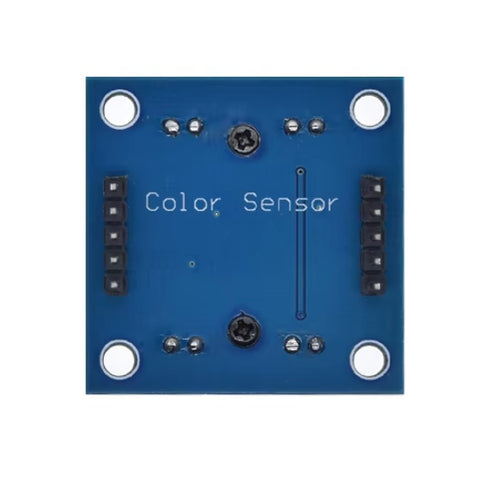

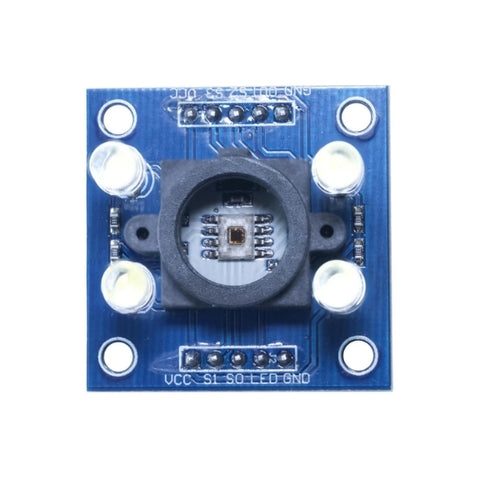

The TCS3200 Color Recognition Sensor Module is a light-to-frequency sensing module designed for accurate RGB color detection. It integrates the TCS3200 color converter with onboard white LEDs to ensure stable illumination and reliable readings. The module outputs square-wave frequency signals proportional to detected color intensity, enabling direct interfacing with microcontrollers. It operates at 3–5 V DC and supports selectable frequency scaling for flexible performance control. This module is widely used in robotics, automation systems, and educational electronics projects.
Features
TCS3200 color light-to-frequency converter
Full RGB and clear light detection
Selectable output frequency scaling
Square-wave digital frequency output
Onboard white LED illumination
3–5 V DC operating voltage
Direct microcontroller interfacing
Compact PCB module design
Specifications
Sensor Type: TCS3200 color light-to-frequency converter
Operating Voltage: 3–5 V DC
Output Signal: Digital square-wave frequency
Frequency Scaling: 100%, 20%, 2% selectable
Color Detection: Red, Green, Blue, Clear
Onboard LEDs: 4 white LEDs
Interface Type: Digital I/O pins
PCB Dimensions: 31 × 24 mm
Operating Principle: Light intensity to frequency conversion
