Capacitive Touch Switch Module – TTP223B, 2–5.5V Input

The TTP223B Capacitive Touch Switch Module is a compact input device designed to replace traditional mechanical buttons with a touch-sensitive interface. It operates using capacitive sensing technology and provides a digital output based on user interaction. The module supports a wide input voltage range from 2.0V to 5.5V and features low power consumption with automatic low-power mode after inactivity. Built for stable and reliable operation, it can be mounted behind non-metallic surfaces such as plastic or glass for hidden touch applications. Ideal for embedded systems, control panels, and interactive electronics projects.

• TTP223B capacitive touch sensing IC

• Momentary touch output operation

• Wide operating voltage range 2.0V–5.5V

• Low power consumption in standby mode

• Automatic low-power mode after 12 seconds inactivity

• Digital output signal (HIGH/LOW)

• High sensitivity touch detection

• Supports hidden installation behind non-metallic surfaces

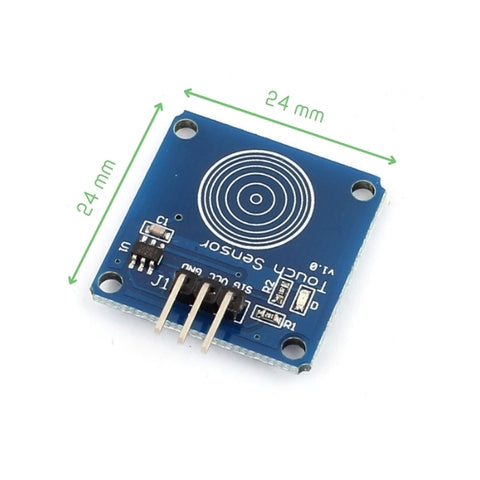

• Compact PCB design 24 × 24 mm

• Integrated mounting holes for secure installation

• Fast response time in touch mode (60 ms)

• Stable output with noise resistance

• No mechanical wear compared to push buttons

• Compatible with microcontrollers and Arduino systems

• Supports both direct and surface touch activation

• Operating Voltage: 2.0–5.5V DC

• Typical Operating Voltage: 3V DC

• Output Type: Digital HIGH/LOW

• Output High Voltage (VOH): 0.8 × VCC

• Output Low Voltage (VOL): 0.3 × VCC

• Output Sink Current: 8 mA @ 3V

• Output Source Current: 4 mA @ 3V

• Response Time (Touch Mode): 60 ms

• Response Time (Low Power Mode): 220 ms

• Auto Low Power Timeout: 12 seconds

• Touch Method: Capacitive sensing

• Mounting Holes: 4 × M2

• Module Dimensions: 24 × 24 × 7.2 mm

• Surface Compatibility: Non-metallic materials only

• Operating Mode: Momentary (active while touched)
