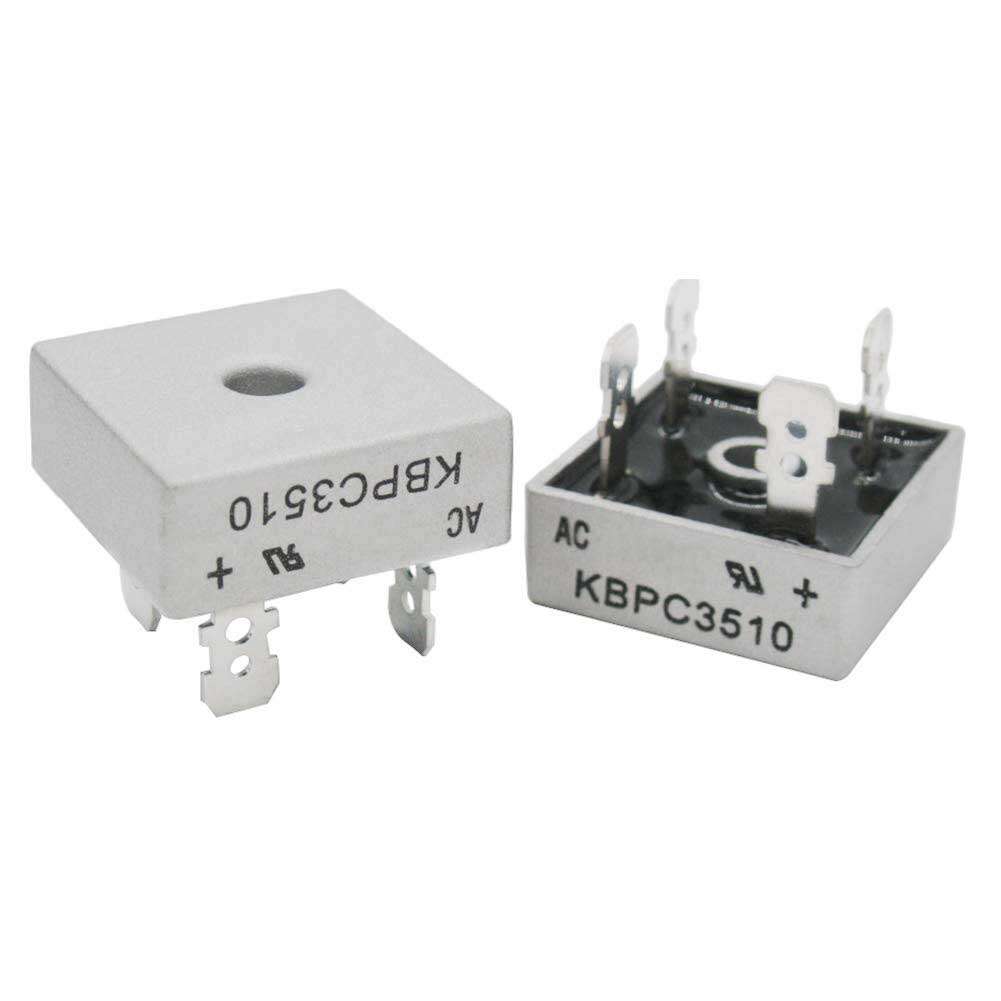

KBPC3510 Bridge Rectifier Diode 35 A 1000 V

  • Sale
  • 8 QAR
Product ID: VT-1962
This product is available.

We do not currently have an estimate for arrival date. Contact us for urgent custom order!
The KBPC3510 is a high-current bridge rectifier diode designed for single phase AC to DC conversion.
It integrates four power diodes in a robust metal package to support high forward current operation.
The device is suitable for rectification of mains-frequency AC signals in power conversion circuits.
Its high reverse voltage rating enables use in demanding industrial and power supply applications.
Typical uses include linear power supplies, motor drives, battery chargers, and rectifier modules.

  • Full Wave Bridge Rectifier providing efficient AC to DC conversion

  • High Forward Current Rating supporting power-intensive loads

  • High Reverse Voltage Capability suitable for mains-level rectification

  • Metal Case Construction improving thermal dissipation

  • High Surge Current Tolerance for inrush current conditions

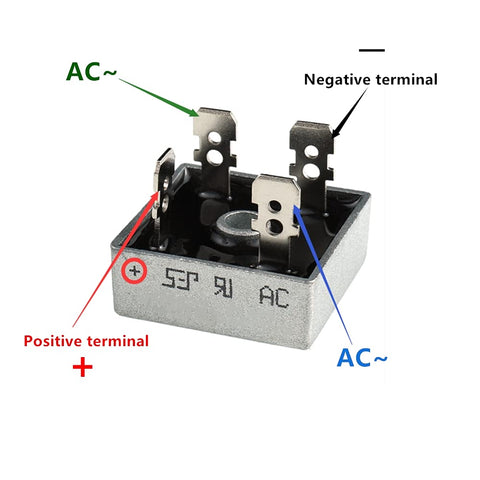

  • Standard KBPC Package enabling chassis or PCB mounting

  • Model | KBPC3510

  • Device Type | Single Phase Bridge Rectifier

  • Maximum Repetitive Reverse Voltage | 1000 V

  • Average Forward Rectified Current | 35 A

  • Peak Forward Surge Current | 400 A

  • Forward Voltage Drop (Typical) | 1.1 V per diode

  • Operating Temperature Range | −55 °C to 150 °C

  • Mounting Type | Through-hole / chassis mount

  • Package Type | KBPC metal package

  • Polarity Configuration | Bridge rectifier
