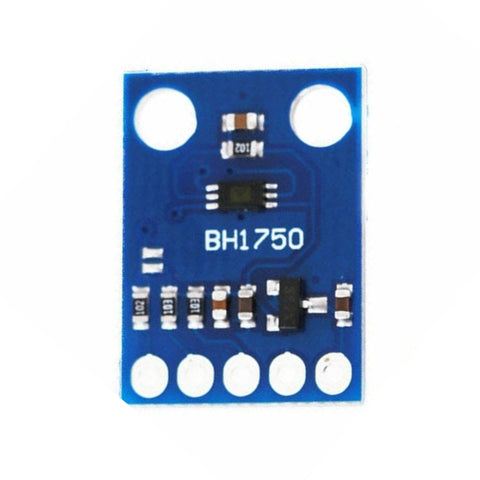

BH1750 Digital Light Intensity Sensor Module – I2C, Lux Output

The BH1750 is a digital ambient light intensity sensor module designed for accurate illumination measurement in lux using the I2C interface. It provides direct digital light readings without the need for analog-to-digital conversion, ensuring stable and reliable results. The module integrates a 3.3 V voltage regulator, allowing safe operation with both 3.3 V and 5 V microcontrollers. On-board I2C pull-up resistors simplify hardware integration and reduce external components. This sensor is suitable for Arduino-based projects, smart lighting systems, and environmental monitoring applications.

• BH1750 digital ambient light sensor

• Direct lux output without ADC conversion

• I2C communication interface

• Wide measurement range up to 65535 lx
• High resolution mode at 1 lx

• Low resolution mode at 4 lx

• On-board 3.3 V voltage regulator

• 5 V and 3.3 V logic compatible

• Integrated I2C pull-up resistors

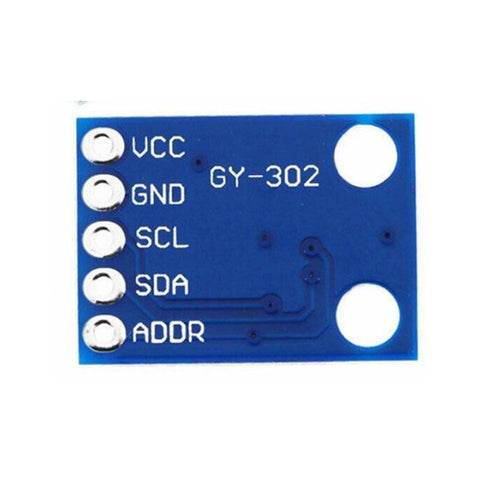

• Configurable I2C address via ADDR pin

• Low power consumption operation

• Compact PCB design for easy integration

• Supply Voltage: 3.3 – 6 V DC

• Supply Current: Up to 190 µA

• Output Type: Digital light intensity (Lux)

• Measurement Range: 1 – 65535 lx

• Resolution (High Mode): 1 lx

• Resolution (Low Mode): 4 lx

• Communication Interface: I2C

• I2C Address (Default): 0x23

• I2C Address (ADDR High): 0x5C

• ADDR Pin Max Voltage: 3.6 V

• On-board Regulator: 3.3 V

• Pull-up Resistors: Integrated on I2C lines

• PCB Length: 18.6 mm

• PCB Width: 14.5 mm

• Weight (with pins): 1.1 g


• BH1750 Datasheet

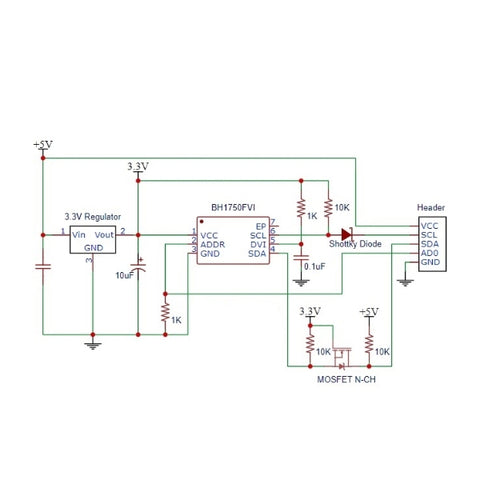

• BH1750 Module Schematic
• Arduino Library for the BH1750
• BH1750 Digital Light Intensity Sensor Module 3D Model
• Holder for Lux sensor BH1750


• BH1750 Light Sensor Tutorial with Arduino and ESP8266 (NodeMCU)
