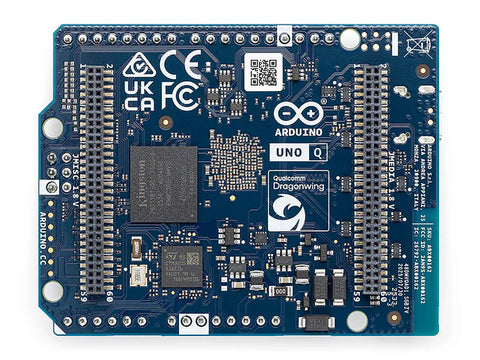

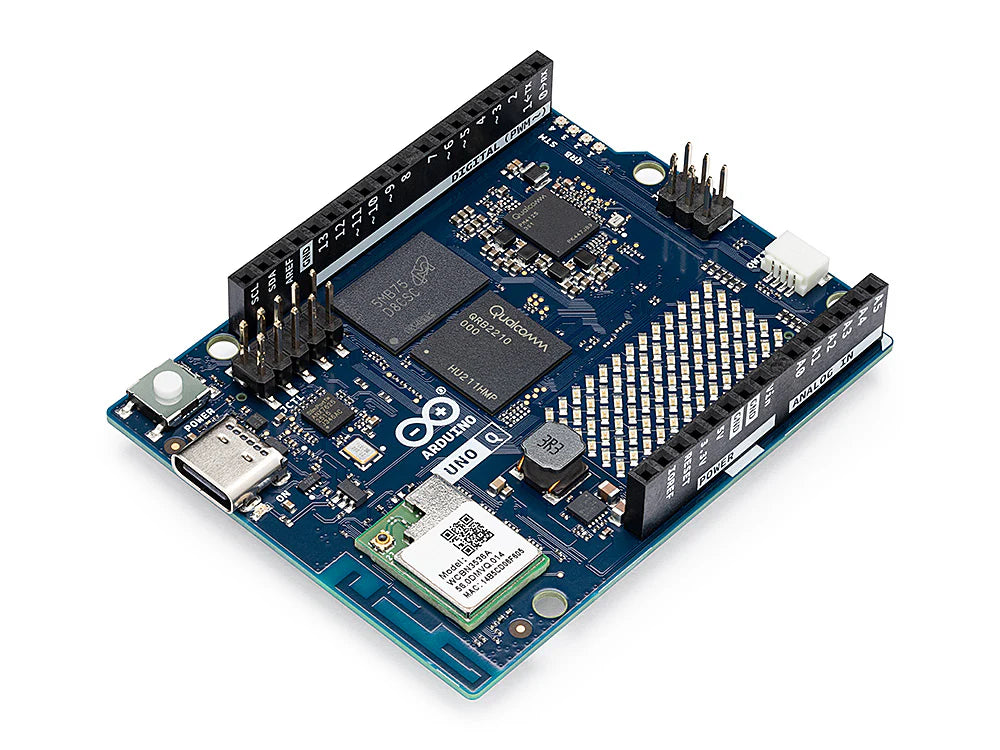

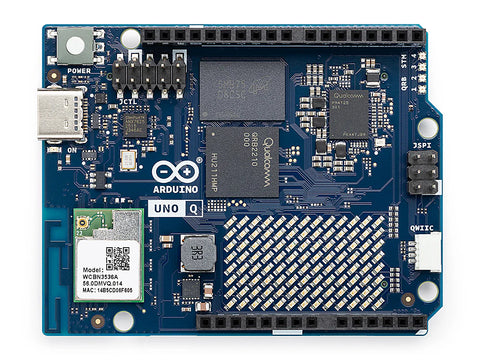

Arduino UNO Q Development Board – QRB2210 Microprocessor

The Arduino UNO Q is a hybrid development board designed for advanced embedded and edge computing applications. It combines the Qualcomm Dragonwing QRB2210 microprocessor, running Debian Linux on a quad-core 2.0 GHz CPU with 2 GB RAM and 16 GB eMMC storage, with a real-time STM32U585 microcontroller for deterministic hardware control. This dual-architecture design enables high-level processing alongside low-latency, real-time operations. Integrated Wi-Fi 5 and Bluetooth 5.1 support reliable wireless connectivity. The board maintains compatibility with the Arduino UNO ecosystem and is suitable for robotics, data acquisition, computer vision, and industrial IoT development.

• Microprocessor Unit: Qualcomm Dragonwing QRB2210
• MPU CPU: Quad-core Arm Cortex-A53 @ 2.0 GHz
• Graphics Processor: Adreno 702 GPU @ 845 MHz
• Operating System: Debian Linux
• System Memory: 2 GB LPDDR4
• Onboard Storage: 16 GB eMMC
• Microcontroller Unit: STM32U585 Arm Cortex-M33 @ up to 160 MHz
• MCU Memory: 2 MB Flash, 786 KB SRAM
• Wireless Connectivity: Wi-Fi 5 (802.11ac), Bluetooth 5.1
• USB Interface: 1 × USB-C (Host, Device, DisplayPort)
• Operating Voltage: 5 V DC via USB-C
• VIN Input Voltage: 7–24 V DC
• Board Dimensions: 68.58 × 53.34 mm
• Compatibility: Arduino UNO shields and ecosystem
