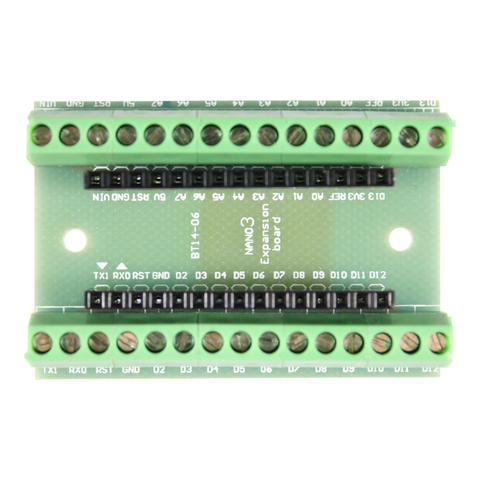

Arduino Nano Terminal Expansion Shield

The Arduino Nano Terminal Expansion Shield provides secure and organized screw terminal access to all Arduino Nano pins.
It allows easy connection of external sensors, modules, and power lines without soldering directly to the Nano board.
Each I/O pin is routed to clearly labeled screw terminals for reliable wiring.
The shield is suitable for rapid prototyping, testing, and semi-permanent installations.
It supports clean and maintainable wiring in embedded and automation projects.

• Full Pin Breakout for all Arduino Nano digital and analog pins

• Screw Terminal Connections for secure and tool-assisted wiring

• Clearly Labeled Terminals simplifying installation and debugging

• Compact PCB Design suitable for embedded systems

• Direct Nano Plug-In Slot for easy integration

• Power Distribution Access for organized supply wiring

• Product Type | Terminal Expansion Shield

• Compatibility | Arduino Nano and compatible boards

• Connection Type | Screw terminals

• Logic Voltage | 5 V (Nano compatible)

• Mounting Type | Nano plug-in board

• Pin Access | Digital, Analog, Power, and Communication Pins

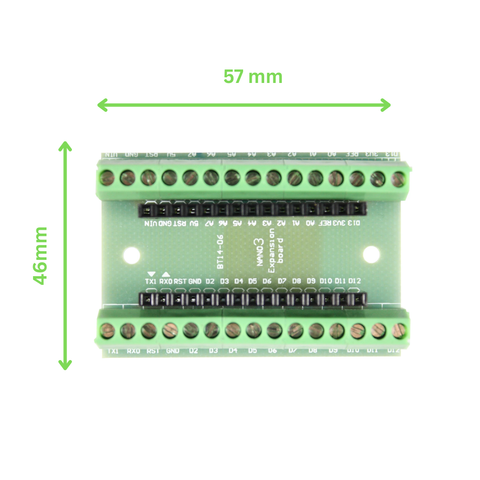

• PCB Dimensions | Approx. 57 mm × 46 mm
