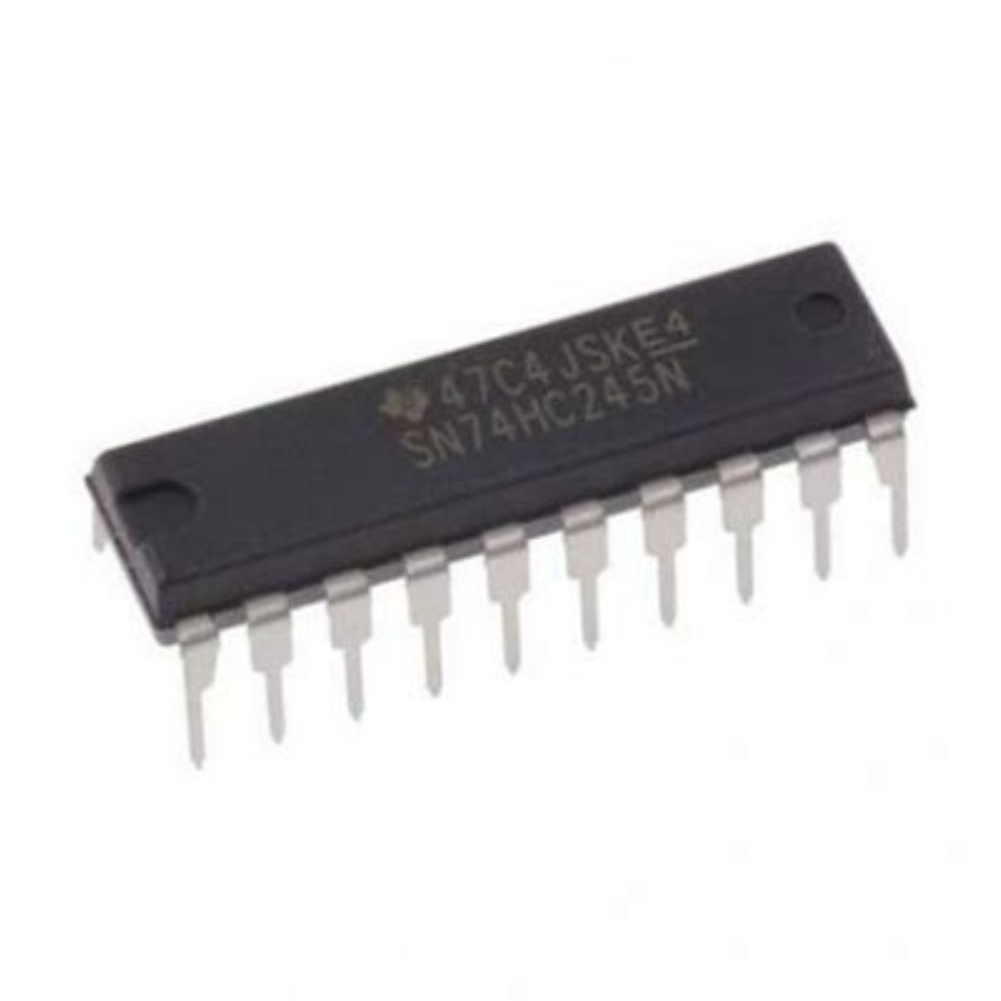

74245 Octal Bus Transceiver Logic IC

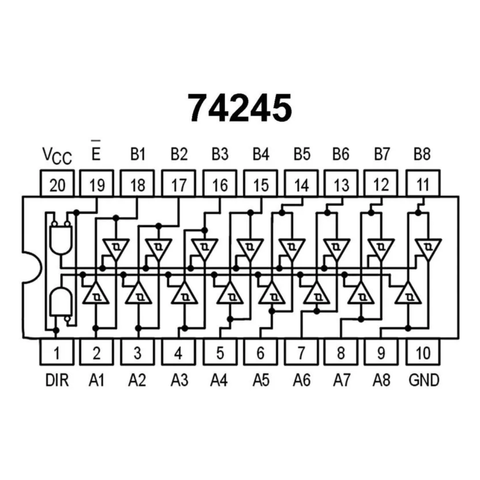

The 74245 is a TTL logic IC that integrates eight bidirectional bus transceivers in a single package.
It enables controlled data transfer between two 8-bit buses using direction and enable control inputs.
The device operates from a single 5 V supply and is compatible with standard TTL logic levels.
Three-state outputs allow direct connection to shared system buses.
Typical applications include data bus interfacing, microprocessor systems, and bidirectional signal buffering.

• Octal Bus Transceiver Architecture providing eight bidirectional channels

• Three-State Outputs enabling shared bus operation

• Direction Control Input selecting data flow direction

• Output Enable Control allowing bus isolation

• TTL Logic Family compatible with standard TTL levels

• Through-Hole DIP Package for breadboard and PCB use

• Model | 74245

• Device Type | Octal Bus Transceiver IC

• Logic Family | TTL

• Number of Channels | 8

• Data Direction Control | Bidirectional

• Output Type | Three-State

• Supply Voltage | 5 V

• Propagation Delay (Typical) | 12 ns

• Output Drive Capability | ±15 mA

• Power Consumption (Typical) | 60 mW

• Operating Temperature Range | 0 °C to 70 °C

• Package Type | 20-Pin DIP
