GT2 Timing Belt Pulley 20 Teeth 5mm Bore – Bearing Integrated

The GT2 20-teeth timing belt pulley is designed for precise motion transmission in linear and rotational systems. It features a built-in bearing that allows smooth rotation on a stationary 5 mm shaft, simplifying mechanical assembly and reducing alignment complexity. The pulley is secured using set screws for stable mounting and reliable torque transfer. Manufactured from durable metal, it ensures consistent performance with low friction and minimal wear. Suitable for 3D printers, CNC machines, and automated motion systems.

• 20-teeth GT2 pulley profile for precise motion control

• Integrated bearing for smooth rotation on fixed shafts

• 5 mm bore compatible with standard shafts

• Dual set screw locking mechanism for secure mounting

• Aluminum alloy construction for durability and low weight

• Low friction operation for efficient power transmission

• High concentricity for reduced vibration

• Compatible with GT2 timing belts (2 mm pitch)

• Designed for stationary shaft applications

• Compact design for tight mechanical assemblies

• Corrosion-resistant surface finish

• Stable performance under continuous operation

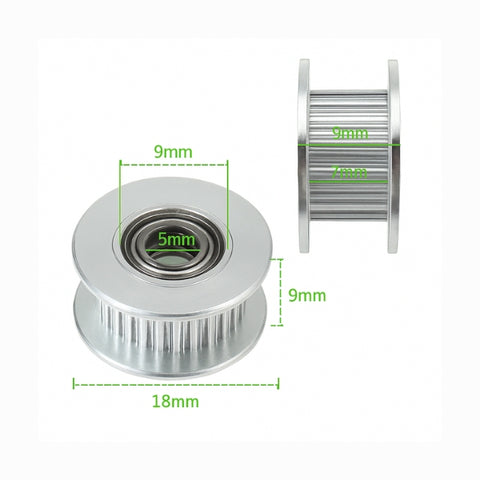

• Teeth Count: 20

• Belt Type: GT2 (2 mm pitch)

• Bore Diameter: 5 mm

• Outer Diameter: 18 mm

• Pulley Width: 7 mm

• Total Width: 18 mm

• Material: Aluminum Alloy

• Bearing Type: Integrated Ball Bearing

• Mounting Method: Set Screws

• Set Screw Size: M3

• Weight: 12 g

• Surface Finish: Anodized

• Application Type: Stationary Shaft Rotation
