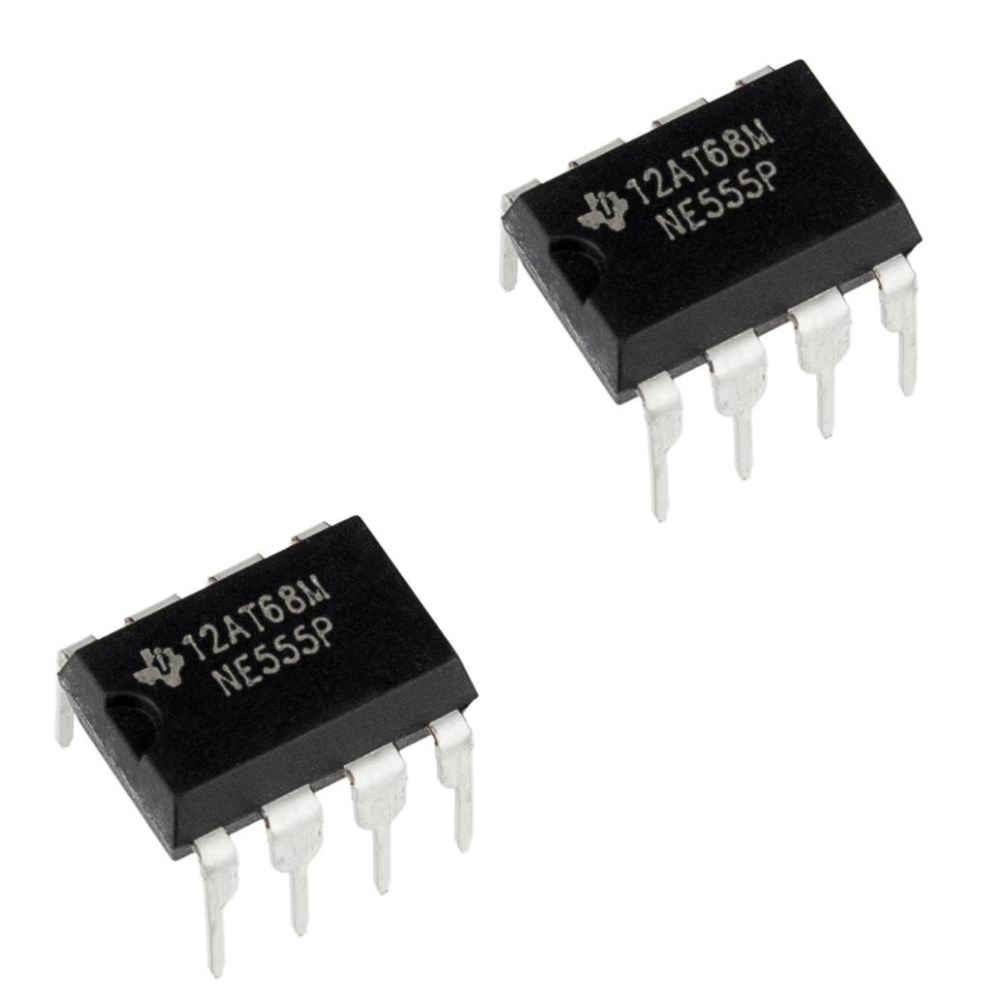

NE555P Timer IC Single Precision Timer - 2 Pieces

The NE555P is a widely used precision timer integrated circuit designed for generating accurate time delays and oscillation signals.
It can operate in astable, monostable, and bistable modes to support a wide range of timing applications.
The device functions over a broad supply voltage range and interfaces easily with digital and analog circuits.
Its stable operation and simple external component requirements make it suitable for education, prototyping, and control systems.
This set includes two identical ICs for development and replacement use.

• Precision Timer Circuit supporting stable timing generation

• Multiple Operating Modes including astable, monostable, and bistable

• Wide Supply Voltage Range enabling flexible power configurations

• High Output Drive Capability suitable for TTL and CMOS logic

• Adjustable Duty Cycle Control using external resistors and capacitors

• Noise Immunity Design ensuring reliable triggering behavior

• Model | NE555P

• IC Function | Precision Timer

• Operating Voltage Range | 4.5 V to 16 V

• Supply Current (Typical) | 3 mA to 15 mA

• Maximum Output Current | 200 mA

• Timing Accuracy | 0.1 % per °C

• Operating Temperature Range | 0 °C to 70 °C

• Package Type | 8-pin DIP

• Mounting Type | Through-hole

• Quantity | 2-pieces
