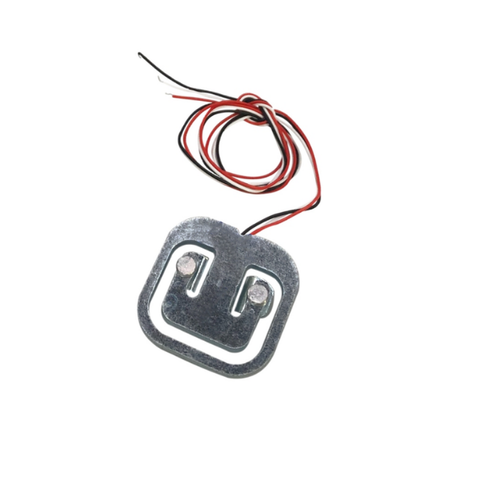

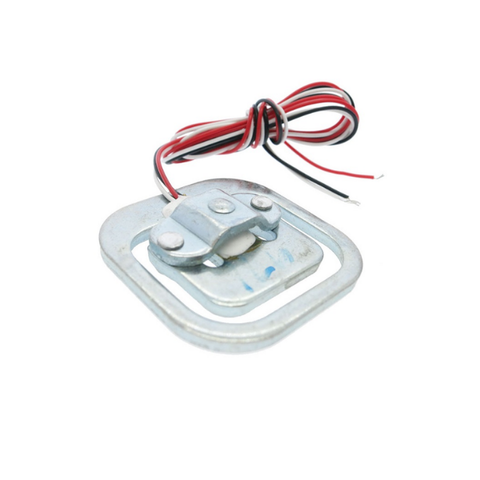

50Kg Load Cell Weight Sensor – Strain Gauge Type

The 50Kg Load Cell Weight Sensor is a strain gauge–based sensor designed for measuring weight and force in electronic weighing systems. It converts mechanical load into a small electrical signal that can be processed by microcontrollers using an amplifier such as the HX711. The sensor is commonly used in digital weighing scales and provides reliable and repeatable measurements when properly calibrated. It is suitable for embedded systems, smart weighing devices, and automation projects.

• Strain gauge–based load cell sensor

• Maximum load capacity up to 50 kg

• Analog millivolt signal output

• Aluminum alloy body construction

• High measurement repeatability

• Suitable for digital weighing systems

• Compatible with HX711 load cell amplifier

• Stable performance after calibration

• Compact bar-type mechanical design

• Suitable for Arduino and microcontroller projects

• Load Capacity: 50 kg

• Sensor Type: Strain Gauge Load Cell

• Output Sensitivity: 1.0 ±0.15 mV/V

• Excitation Voltage: 5–10 V

• Zero Balance: ±0.1 mV/V

• Nonlinearity: ±0.05 %FS

• Hysteresis: ±0.05 %FS

• Repeatability: ±0.05 %FS

• Material: Aluminum Alloy

• Cable Length: 20–30 cm

• Dimensions: 75 mm × 12 mm × 12 mm

• Operating Temperature: -10 °C to 40 °C

• Compatible Amplifier: HX711 Load Cell ADC
