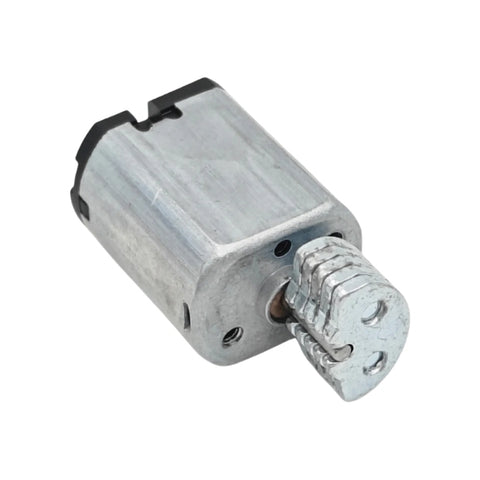

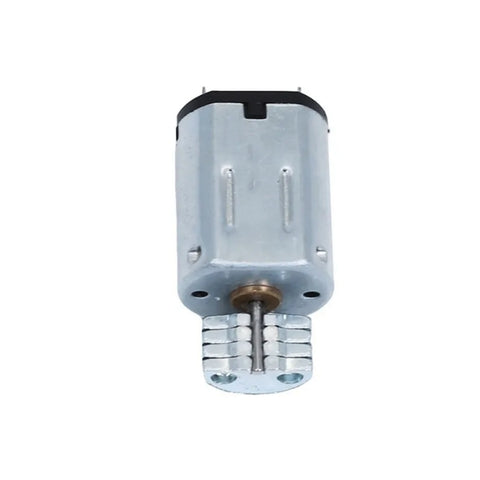

DC Vibration Motor – 3–6V Micro Cylindrical Motor with Eccentric Weight

The DC Vibration Motor is a compact cylindrical motor designed to generate mechanical vibration for electronic and embedded applications. It operates within a 3–6V DC range and integrates an eccentric rotating mass (ERM) for consistent vibration output. The motor provides stable performance with low idle current and controlled speed characteristics across voltage levels. Its lightweight metal construction ensures durability and ease of integration. Suitable for haptic feedback systems, alert devices, and small robotics projects.

• ERM vibration mechanism with integrated eccentric weight

• Operating voltage range from 3V to 6V DC

• Stable rotational speed up to 1870 RPM

• Low idle current for energy-efficient operation

• Compact cylindrical form factor for embedded systems

• Lightweight design at 46.6 g for portable applications

• 2 mm shaft diameter for standard coupling compatibility

• Metal body construction for durability

• Fast response vibration output

• Suitable for continuous and intermittent operation

• Simple two-wire DC interface

• Compatible with microcontroller-based control systems

• Low noise mechanical operation

• Easy integration into small enclosures and devices

• Motor type: DC vibration motor with eccentric rotating mass

• Operating voltage: 3–6V DC

• Rated speed: 1000 RPM at 3V, 1870 RPM at 6V

• Idle current: 0.02A at 3V, 0.06A at 6V

• Stall current: 0.11A at 3V, 0.2A at 6V

• Motor dimensions: 30 × 23.5 mm (excluding shaft)

• Shaft diameter: 2 mm

• Shaft length: 10 mm

• Eccentric weight size: 6 mm thickness × 13 mm diameter

• Motor weight: 46.6 g

• Rotation type: Unbalanced mass rotation

• Control method: Direct DC power supply

• Mounting: Standard cylindrical mounting

• Application type: Vibration generation and haptic feedback
