Mini Slide Switch – SPDT 3 Pin ON-ON 3mm (3 PCS)

The Mini Slide Switch is a compact SPDT ON-ON switch designed for precise control in small electronic circuits. It features a 3-pin configuration that allows switching between two circuits, making it suitable for signal selection and mode control. With a 3mm compact form factor, it fits easily into space-constrained PCB layouts and embedded systems. The switch provides stable mechanical performance with reliable contact switching over extended use. Ideal for DIY electronics, PCB projects, and low-power control applications.

• SPDT switching configuration for dual circuit control

• ON-ON two-position slide mechanism

• Compact 3mm form factor

• 3-pin PCB mounting design

• Suitable for signal routing applications

• Durable metal housing construction

• Stable mechanical switching performance
• Low contact resistance design

• High insulation resistance capability

• Designed for PCB integration

• Lightweight and space-saving structure

• Reliable operation over repeated cycles

• Pack includes 3 switches

• Switch Type: Slide Switch

• Switch Configuration: SPDT

• Positions: 2 (ON-ON)

• Pin Configuration: 3 Pins

• Mounting Type: PCB Through-Hole

• Actuator Type: Slide

• Rated Voltage: 50V DC

• Rated Current: 0.5A

• Contact Material: Copper Alloy

• Housing Material: Metal

• Operating Temperature: -10°C to +70°C

• Electrical Life: 10,000 cycles

• Insulation Resistance: ≥100 MΩ

• Contact Resistance: ≤100 mΩ

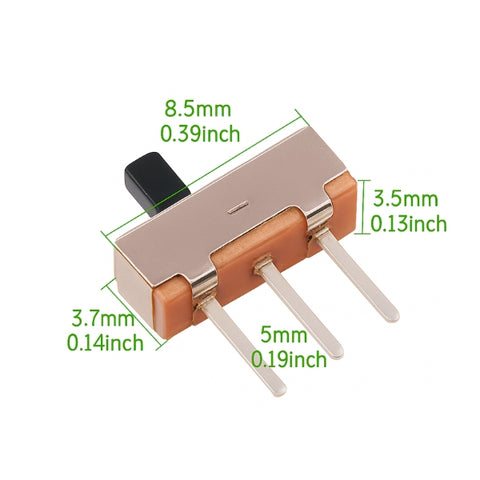

• Dimensions: 8 × 3 × 4 mm (approx.)

• Quantity: 3 Pieces
