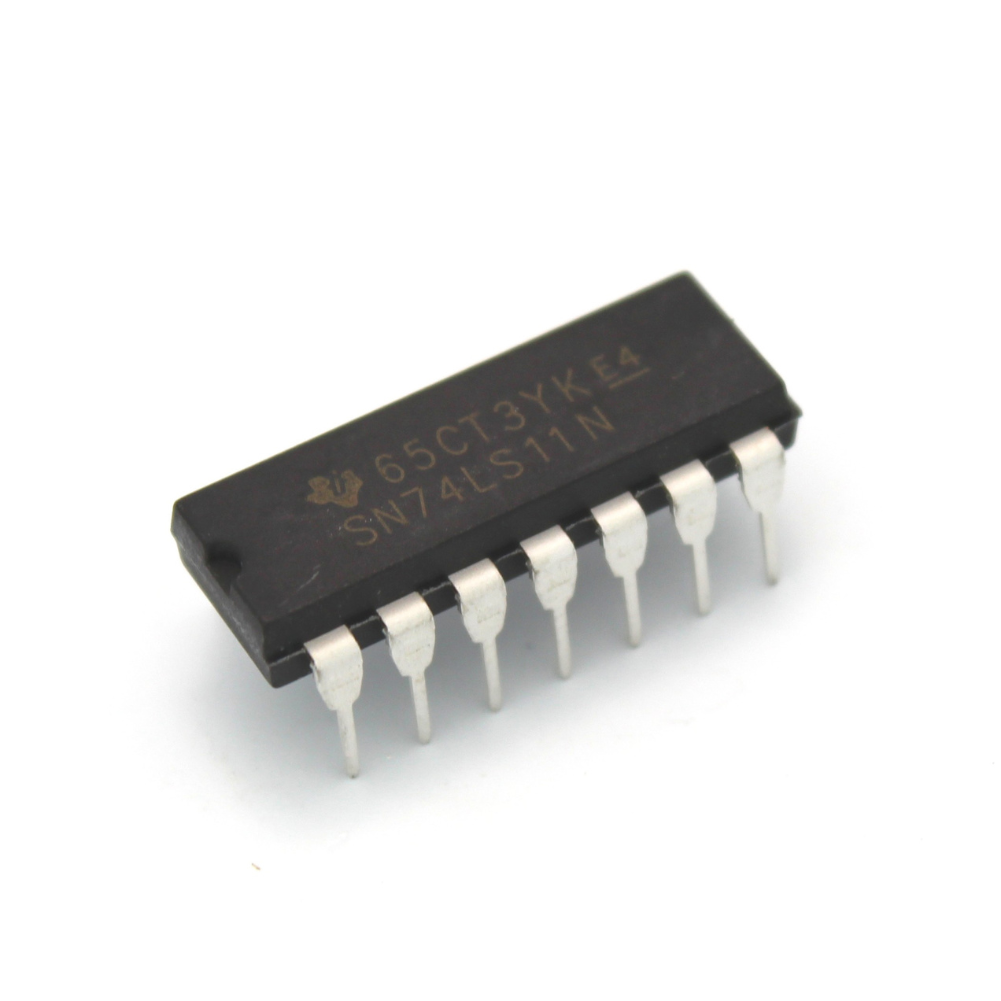

7411 Triple 3-Input AND Gate Logic IC

The 7411 is a TTL logic IC that integrates three independent 3-input AND gates in a single package.
It performs multi-input AND logic functions used in combinational and control circuits.
The device operates from a single 5 V supply and is compatible with standard TTL logic levels.
It provides stable switching characteristics suitable for low-speed digital systems.
Typical applications include logic decoding, signal qualification, timing circuits, and educational digital designs.

• Triple AND Gate Configuration providing three 3-input logic gates

• TTL Logic Family compatible with standard TTL levels

• Single 5 V Supply Operation for digital logic systems

• Independent Gate Inputs and Outputs enabling flexible circuit design

• Low Propagation Delay suitable for basic timing applications

• Through-Hole DIP Package for breadboard and PCB use

• Model | 7411

• Device Type | Triple 3-Input AND Gate IC

• Logic Family | TTL

• Number of Gates | 3

• Inputs per Gate | 3

• Supply Voltage | 5 V

• Input Logic Levels | TTL Compatible

• Propagation Delay (Typical) | 10 ns

• Power Consumption (Typical) | 10 mW per gate

• Operating Temperature Range | 0 °C to 70 °C

• Package Type | 14-Pin DIP
