L298N Dual H-Bridge Motor Driver Module – 2A 5V–35V

The L298N Motor Driver Module is a dual full-bridge driver designed for controlling DC motors and bipolar stepper motors in embedded and robotics applications. Based on the L298 high-current driver IC, it supports driving two DC motors or one stepper motor with standard TTL logic levels. The module operates within a wide voltage range of 5V to 35V and delivers up to 2A per channel. Built for stable and reliable performance, it includes onboard heat dissipation and is compatible with common microcontrollers and control systems. It is suitable for robotics, automation systems, and motor control prototyping.

• L298N dual H-bridge motor driver IC

• Supports two DC motors or one stepper motor

• Up to 2A output current per channel

• Wide motor voltage range 5V to 35V

• TTL logic level control interface

• Built-in freewheeling diodes for protection

• Onboard 5V regulator for logic supply

• Heat sink for thermal dissipation

• PWM speed control capability

• Direction control via logic inputs

• Screw terminals for secure wiring

• Compatible with Arduino and other MCUs

• Supports L297 controller integration

• Compact module design for easy integration


• Driver IC: L298N dual full-bridge

• Motor Voltage: 5V–35V DC

• Logic Voltage: 5V DC

• Drive Current: 2A max per channel

• Total Power Dissipation: 25W max

• Logic Current: 0–36mA
• Control Type: TTL logic compatible

• Number of Channels: 2 (dual H-bridge)

• Motor Support: 2 DC motors or 1 stepper motor

• PWM Control: Supported

• Protection: Freewheeling diodes included

• Cooling: Aluminum heat sink

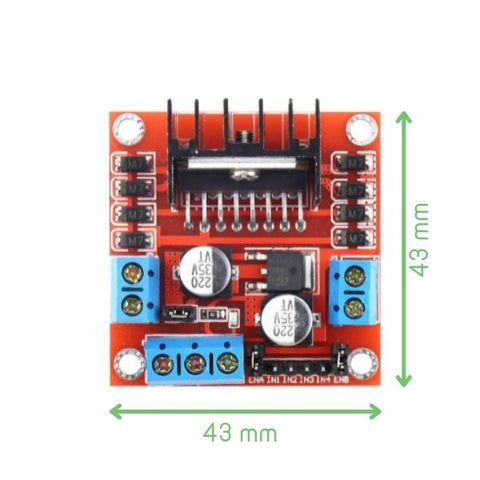

• Module Dimensions: ~43 × 43 × 27 mm

• Weight: ~30 g
