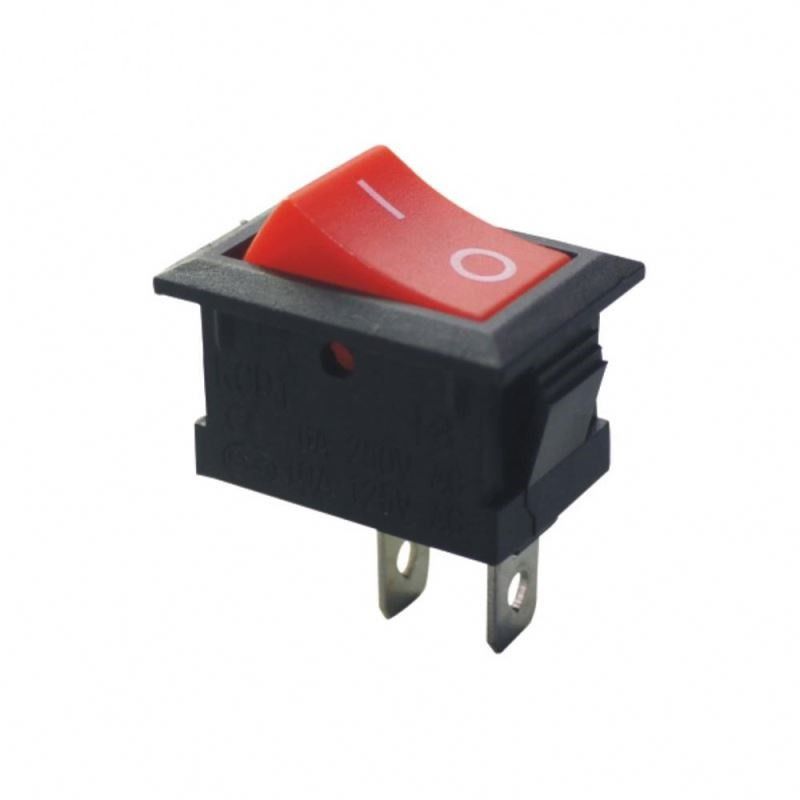

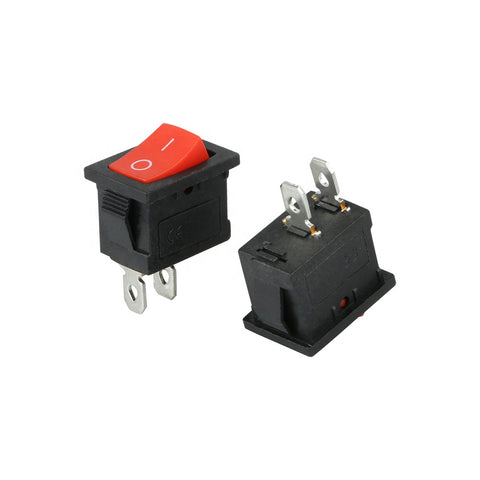

2 Position Rocker Switch – 250V 3A Red 2 Pin

This 2-position rocker switch is a compact electrical switch designed for simple ON-OFF control in low-power circuits. It operates at a rated voltage of 250V and a current of up to 3A, making it suitable for a wide range of electronic and DIY applications. The switch features a durable plastic housing with a clear red actuator for easy visual indication of its state. Built for consistent performance, it provides reliable switching action and easy panel mounting. Ideal for control panels, small appliances, and embedded electronic projects.

• 2-position ON-OFF switching mechanism

• Rated for 250V AC operation

• Supports up to 3A current load

• 2-pin terminal configuration

• Compact 10 × 15 mm body size

• Red actuator for clear visual indication

• Snap-in panel mounting design

• Durable plastic housing construction

• Stable mechanical switching performance

• Low contact resistance for efficient conduction

• Suitable for AC power control applications

• Lightweight and space-saving design

• Easy integration into electronic circuits

• Reliable long-term operation

• Rated Voltage: 250V AC

• Rated Current: 3A

• Switch Type: Rocker Switch

• Positions: 2 (ON-OFF)

• Contact Configuration: SPST

• Number of Pins: 2

• Mounting Type: Panel Mount (Snap-in)

• Actuator Color: Red

• Body Material: Plastic

• Contact Material: Metal Alloy

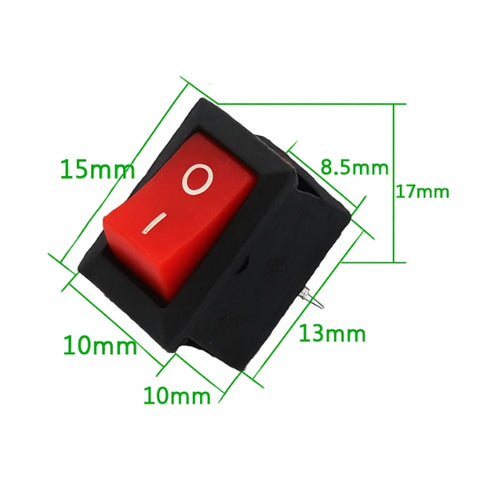

• Dimensions: 10 mm × 15 mm

• Operating Temperature: -10°C to +85°C

• Electrical Life: ≥10,000 cycles

• Mechanical Life: ≥50,000 cycles
