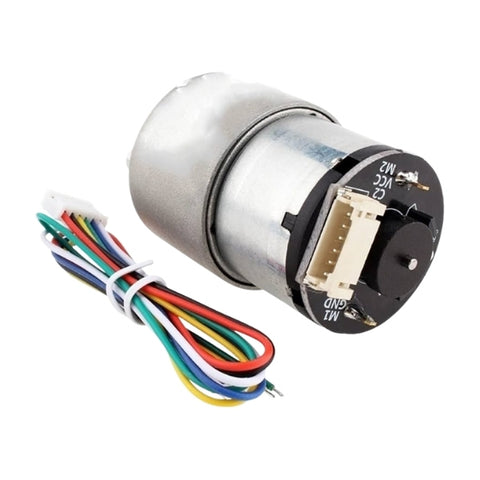

12V JGB37-520 DC Geared Motor with Encoder – 530 RPM

The 12V DC Geared Motor with Encoder is a compact brushed motor designed for precise motion control applications. It features a 19:1 metal gearbox, delivering controlled speed and high torque output up to 3.1 kg·cm. The integrated encoder provides accurate feedback for speed, position, and direction, enabling reliable closed-loop control. Built with a durable metal gear system and D-type shaft, it ensures stable performance under load. Suitable for robotics, automation systems, and embedded motion control projects.

• Integrated encoder for speed and position feedback

• Metal gearbox construction for durability and load handling

• 19:1 gear reduction ratio for torque optimization

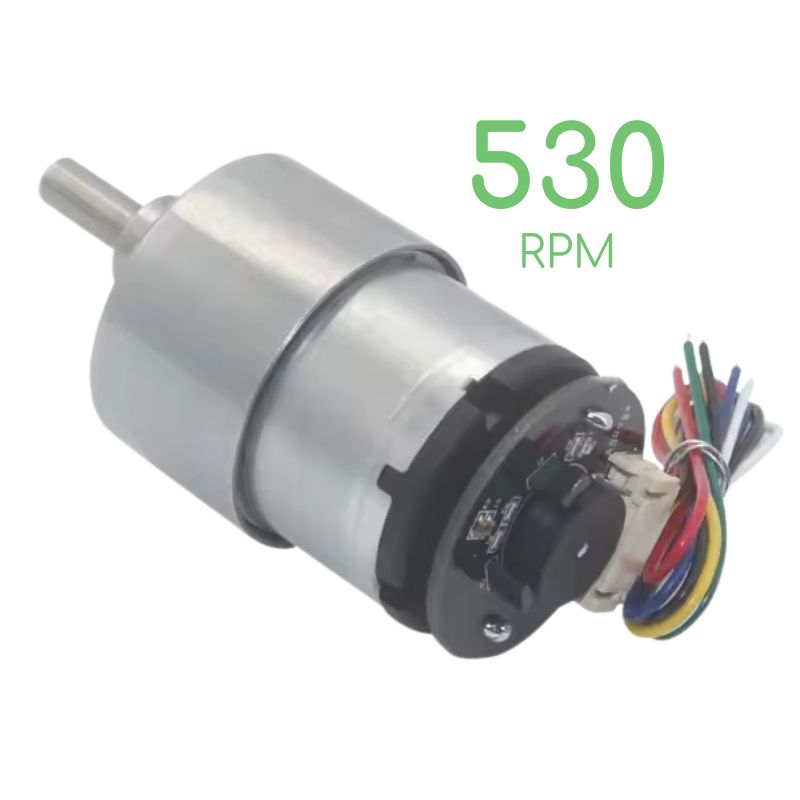

• 530 RPM no-load speed at 12V

• Rated torque output of 2.2 kg·cm

• Maximum torque up to 3.1 kg·cm

• D-type output shaft for secure coupling

• Bidirectional rotation support

• Low no-load current ≤ 0.12A

• Stall current up to 2.3A

• Compact gearbox length 22 mm

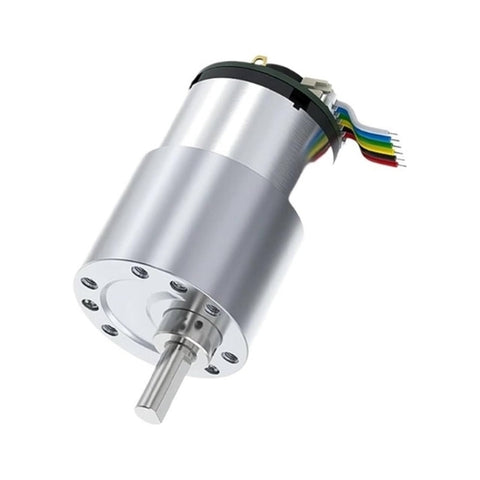

• Six M3 mounting holes for easy installation

• Off-centered shaft design for flexible integration

• Suitable for closed-loop motor control systems

• Rated Voltage: 12V DC

• No-Load Speed: 530 RPM

• No-Load Current: ≤ 0.12A

• Rated Speed: 407 RPM

• Rated Current: ≤ 1A

• Rated Torque: 2.2 kg·cm

• Maximum Torque: 3.1 kg·cm

• Stall Current: 2.3A

• Gear Ratio: 19:1

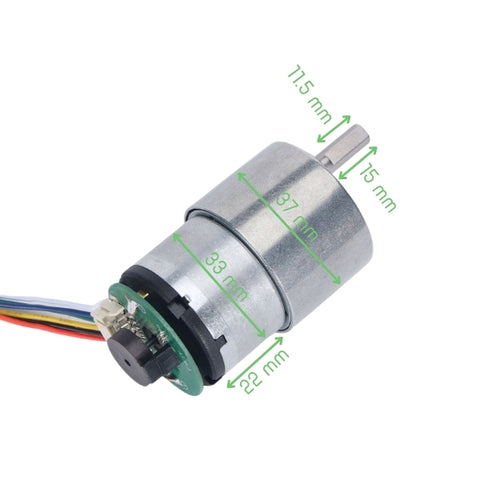

• Gearbox Length: 22 mm

• Shaft Type: D-type

• Mounting Holes: 6 × M3

• Encoder: Integrated incremental encoder

• Rotation Direction: Forward / Reverse
