12V DC Diaphragm Water Pump – 6L/min High Pressure 0.9MPa

The 12V DC High Pressure Diaphragm Water Pump is designed for fluid transfer applications requiring stable pressure and reliable flow performance. It operates within a 9–14.4V DC range and delivers up to 6L/min flow with a maximum pressure of 0.9MPa. Built with a durable ABS and metal construction, the pump ensures consistent operation and resistance to mechanical wear. Its compact structure supports efficient integration into various systems. Suitable for water circulation, spraying systems, and industrial or agricultural fluid handling applications.

• Diaphragm pump mechanism for stable pressure output

• High pressure capability up to 0.9MPa (130 PSI)

• Maximum flow rate of 6L/min

• Wide operating voltage range 9–14.4V DC

• Rated power consumption of 72W

• Durable ABS and metal housing construction

• Continuous duty operation with stable performance

• Self-priming capability for efficient suction

• Compact design for easy installation

• Low noise operation during use

• Operating Voltage: 12V DC (9–14.4V range)

• Current Consumption: 6A

• Rated Power: 72W

• Maximum Pressure: 0.90MPa (130 PSI)

• Maximum Flow Rate: 6L/min

• Pump Type: Diaphragm Pump

• Priming Type: Self-Priming

• Medium Temperature Range: 0°C to 100°C

• Material: ABS and Metal

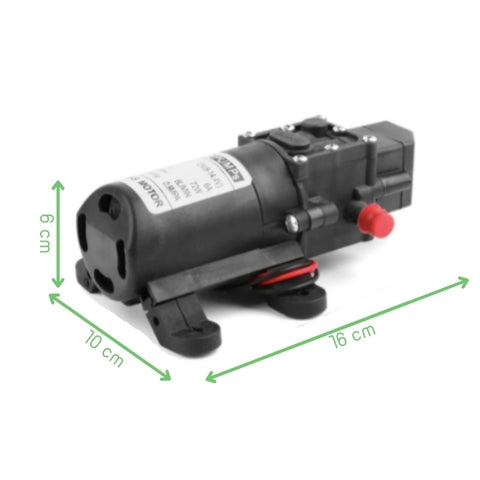

• Dimensions: 160 × 100 × 60 mm

• Color: Black

• Noise Level: Low operational noise

• Installation Type: Fixed mounting

• Fluid Type: Water and light chemical liquids
