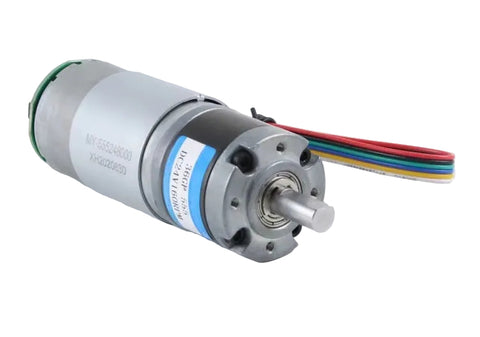

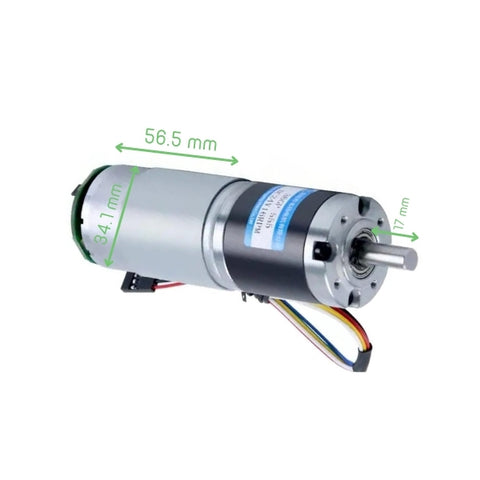

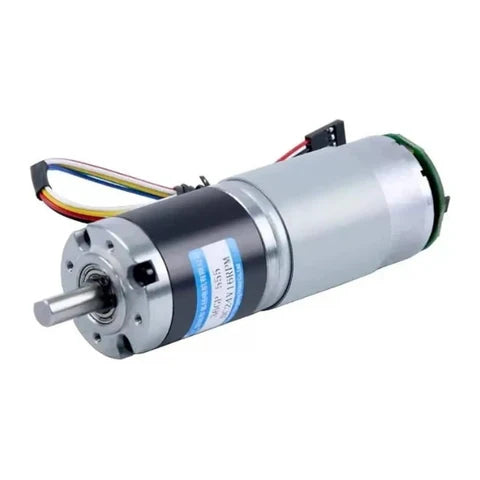

12V DC Geared Motor 36-555 with Encoder – 37RPM

The 36-555 12V DC geared motor with encoder is designed for high-torque, low-speed applications requiring precise motion control. It features a robust metal gearbox with a 218:1 reduction ratio and an integrated encoder for accurate speed and position feedback. The motor delivers stable performance under load, making it suitable for continuous operation in demanding systems. With reliable torque output and controlled rotation, it ensures consistent mechanical performance. Ideal for robotics, automation systems, and precision-driven mechanisms.

• Integrated encoder for speed and position feedback

• 218:1 metal gearbox for high torque output

• Rated torque up to 25 kg·cm

• Maximum torque up to 100 kg·cm

• Low-speed operation at 37 RPM no-load

• Stable rated speed of 31 RPM under load

• Brushed DC motor design for simple control

• High load capacity for mechanical systems

• Compact 36-555 form factor

• Gearbox length of 45 mm for compact integration

• Bidirectional rotation support

• Suitable for PWM speed control systems

• Consistent current characteristics under load

• Durable construction for long-term use

• Rated Voltage: 12 V

• No-Load Speed: 37 RPM

• No-Load Current: 0.4 A

• Rated Speed: 31 RPM

• Rated Current: 1.5 A

• Rated Torque: 25 kg·cm
• Maximum Torque: 100 kg·cm

• Stall Current: 4 A

• Reduction Ratio: 218:1

• Motor Type: Brushed DC Motor with Gearbox

• Encoder Type: Integrated incremental encoder

• Gearbox Length: 45 mm
• Rotation Direction: CW / CCW

• Control Method: PWM speed control compatible


• 12V DC Geared Motor 36-555 with Encoder 3D Model

• Mini metal planetary(epicyclic) geared dc electric motor from China, FAPG36-555, OD 36mm gear motor
