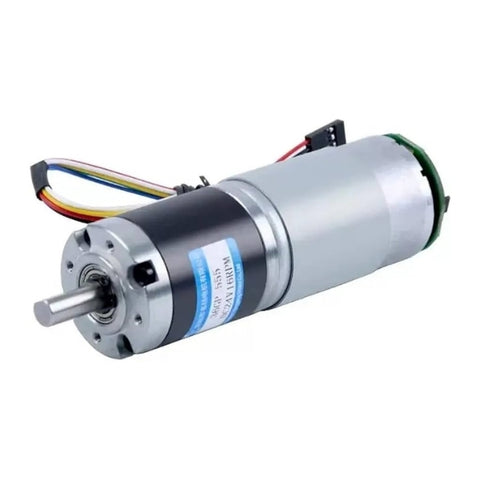

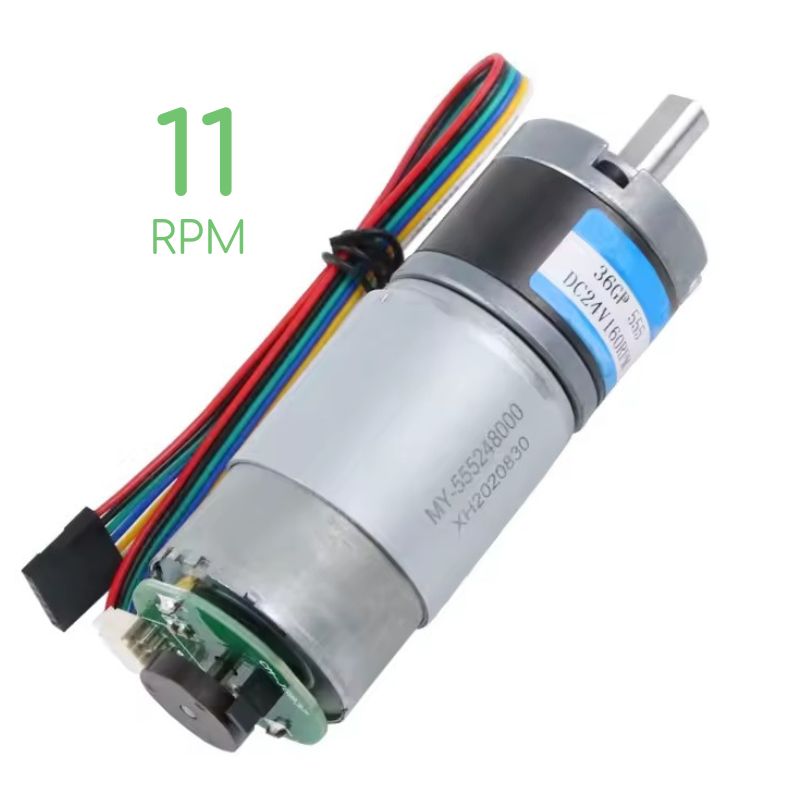

12V DC Geared Motor 36-555 with Encoder – 11RPM High Torque

The 36-555 12V DC Geared Motor with Encoder is a precision-engineered motor designed for high-torque, low-speed applications. It features a 721:1 reduction gearbox and integrated encoder feedback for accurate position and speed monitoring. Built for stable and consistent performance, it supports reliable operation under load with high torque output up to 100 kg·cm. This motor is well-suited for robotics, automation systems, and mechanical control applications requiring precise motion control.

• Integrated encoder for precise speed and position feedback

• 721:1 high reduction gearbox for low-speed high-torque output

• Rated torque up to 85 kg·cm for heavy load applications

• Maximum torque up to 100 kg·cm under peak conditions

• Stable operation at 12V DC input

• Metal gearbox construction for durability

• Low output speed of 11 RPM for controlled motion

• High stall current tolerance up to 4A

• Compact 36-555 motor form factor

• Smooth forward and reverse rotation support

• Suitable for closed-loop control systems

• Consistent performance under continuous operation

• Rated Voltage: 12 V DC

• No-Load Speed: 11 RPM

• No-Load Current: 0.4 A

• Rated Speed: 9 RPM

• Rated Current: 1.5 A

• Rated Torque: 85 kg·cm

• Maximum Torque: 100 kg·cm

• Stall Current: 4 A

• Gear Ratio: 721:1

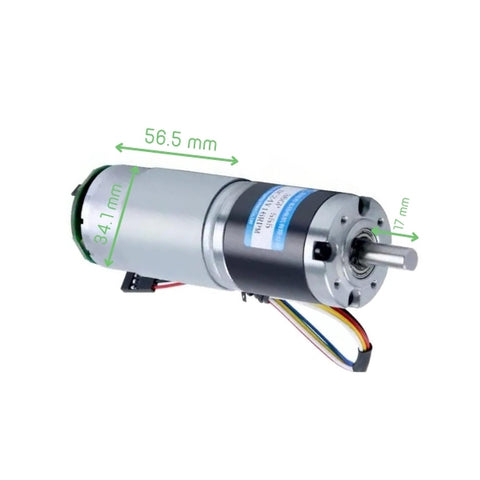

• Gearbox Length: 45 mm

• Motor Type: Brushed DC Geared Motor
• Encoder Type: Integrated incremental encoder
