12V Brushless Cooling Fan – 30x30x10mm

The 12V Brushless Cooling Fan (30x30x10mm) is a compact cooling solution designed for electronic circuits and embedded systems. It operates at high speed up to 16500 RPM, delivering consistent airflow with low noise performance. Built with a sleeve bearing structure, it ensures stable operation and long service life up to 35000 hours. Suitable for cooling PCBs, power modules, 3D printers, and compact enclosures.

• Brushless motor design for long lifespan

• Rated voltage 12V DC operation

• High speed up to 16500 RPM

• Airflow performance 1.9 CFM output

• Low noise level around 20 dBA

• Sleeve bearing for stable rotation

• Compact size 30x30x10 mm

• Low current consumption 0.13A

• Continuous operation capability

• Suitable for tight enclosures

• Lightweight structure for easy mounting

• Reliable thermal management performance


• Rated Voltage: 12V DC

• Rated Current: 0.13A ±10%

• Rated Speed: 16500 RPM ±10%

• Air Flow: 1.9 CFM ±10%

• Noise Level: 20 dBA ±10%

• Bearing Type: Sleeve Bearing

• Operating Life: 35000 hours

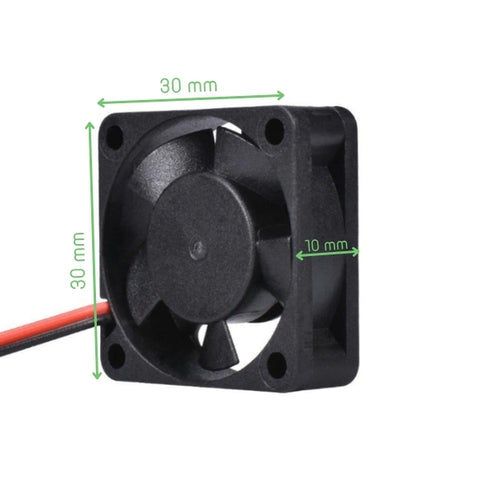

• Fan Dimensions: 30 x 30 x 10 mm

• Motor Type: Brushless DC Motor

• Frame Material: Plastic
• Mounting Type: Screw Mount

• Application: Electronics Cooling

• 30 x 30 x 10mm High Quality DC Fan Datasheet
• 12V Brushless Cooling Fan 3D Model
