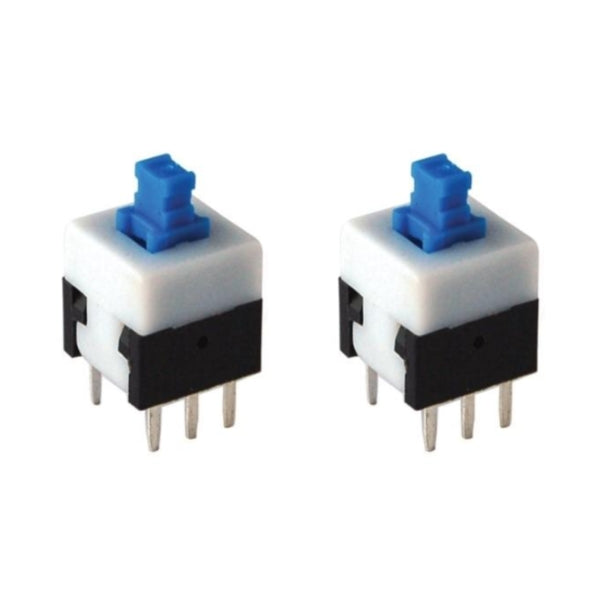

DPDT Self Locking Push Button Switch – 6 Pin Latching (2 Pack)

The DPDT self locking push button switch is a latching control component designed for stable ON/OFF switching in electronic circuits. It features a double pole double throw (DPDT) configuration, allowing control of two independent circuits simultaneously. The self-locking mechanism maintains its state after pressing, eliminating the need for continuous pressure. Built for reliable operation, it ensures consistent electrical contact and easy integration into prototyping environments. Ideal for Arduino projects, control panels, and low-power switching applications.

• DPDT contact configuration for dual circuit control

• Self-locking mechanism with push-on/push-off operation

• 6-pin design for flexible wiring options

• Stable mechanical latching without continuous pressing

• Suitable for low voltage and low current applications

• Compact form factor for embedded systems

• Durable plastic housing with metal contacts

• Easy panel mounting design

• Compatible with Arduino and microcontroller projects

• Reliable switching performance over repeated cycles

• Supports LED and small load control

• Clear tactile feedback during operation

• Switch Type: DPDT push button switch

• Operation Mode: Self-locking (latching ON/OFF)

• Number of Pins: 6 pins

• Contact Configuration: Double Pole Double Throw
• Rated Voltage: 125V AC
• Rated Current: 1A

• Mounting Type: Panel mount

• Actuation Type: Push button

• Body Material: Plastic housing

• Contact Material: Metal alloy

• Operating Life: >10,000 cycles

• Button Type: Round actuator

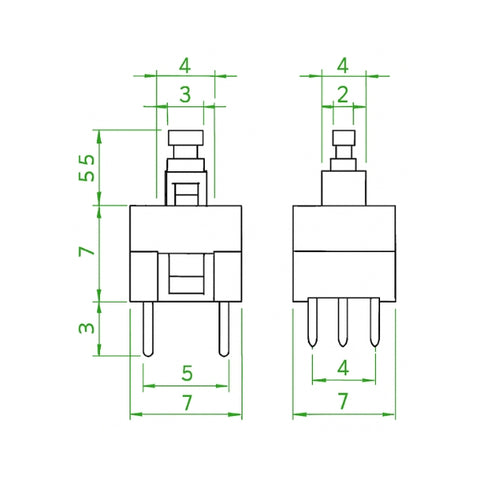

• Dimensions: Approx. 7mm x 7mm x 15mm

• Weight: Approx. 5g per switch

• Pack Quantity: 2 pieces

• Latching DPDT push switch, 7x7mm 3D Model

• SLS77B-B15F11A | 7x7mm self-locking Key switch button switch 6pin
