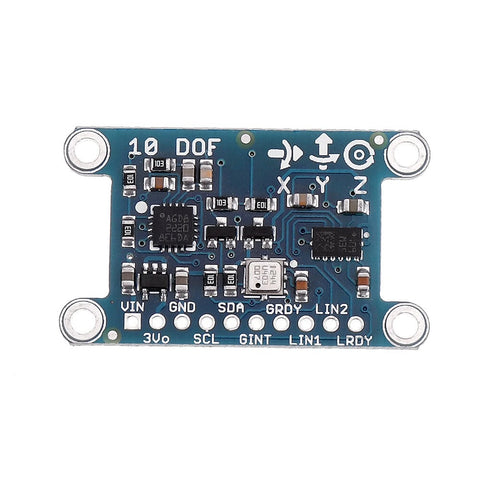

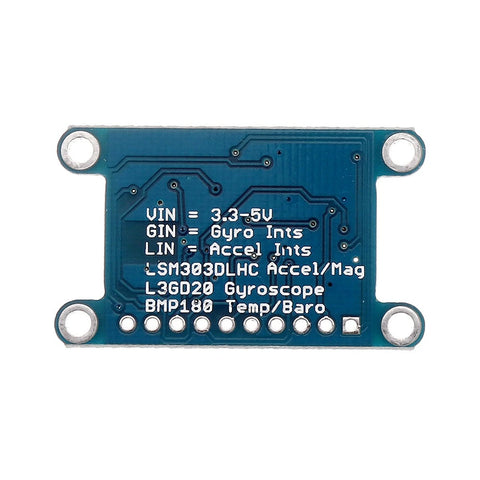

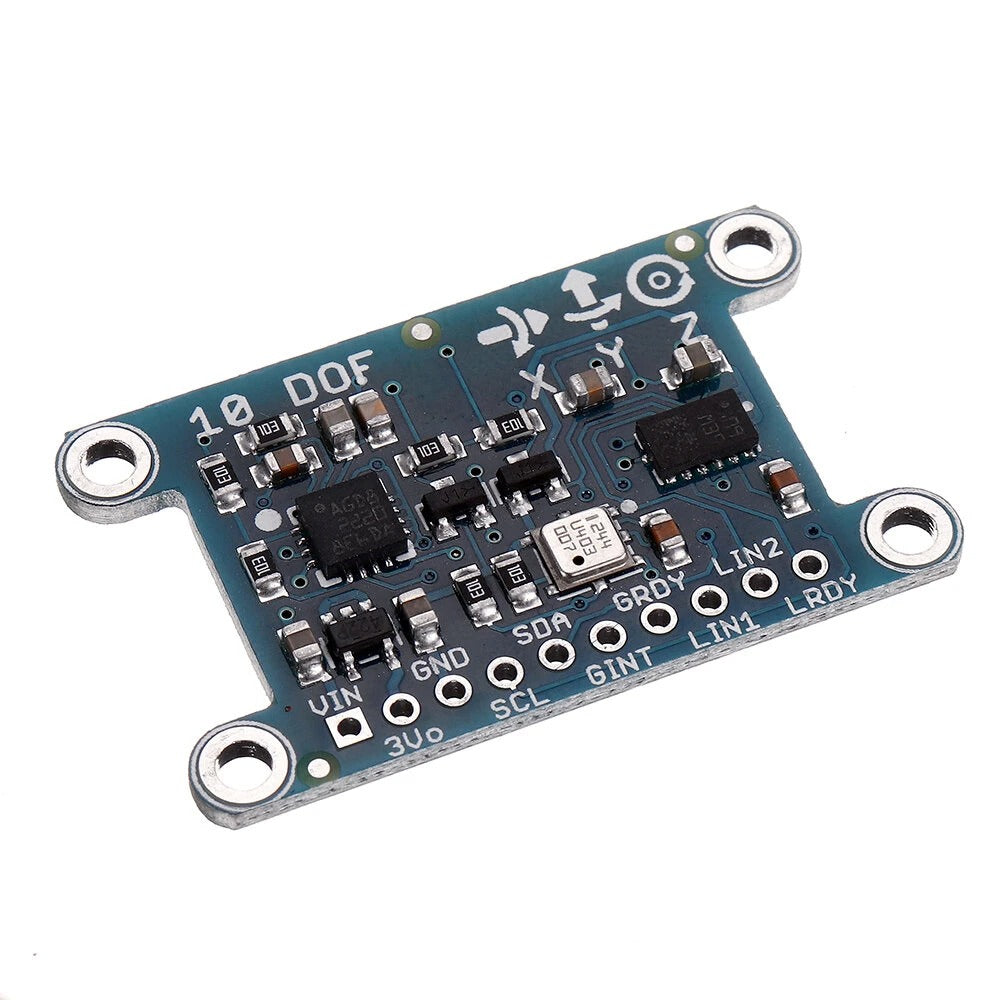

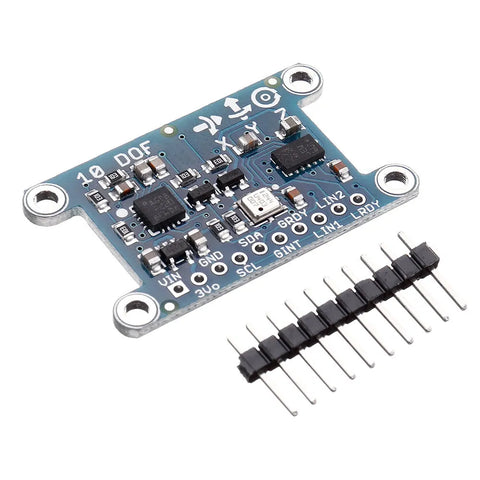

10 DOF IMU Sensor Module LSM303 + L3GD20 I2C

The 10 DOF IMU Sensor Module integrates a 3-axis accelerometer, gyroscope, and magnetometer on a single board for comprehensive motion and orientation sensing. It combines the LSM303DLHC accelerometer/magnetometer and L3GD20 gyroscope to provide multi-axis measurements for robotics, navigation, and embedded systems. The module operates at 3–5 V with onboard voltage regulation and communicates via I2C, compatible with 3.3 V and 5 V logic levels. Its compact 33 × 23 mm FR4 PCB design supports easy integration into development and educational projects, with Adafruit library support for rapid software deployment.

Please note that the board doesn't come with BMP180 sensor

• Degrees of Freedom: 10-DOF motion sensing with accelerometer, gyroscope, and magnetometer.
• Accelerometer: LSM303DLHC 3-axis with ±2g/±4g/±8g/±16g selectable range.
• Gyroscope: L3GD20 3-axis with ±250/±500/±1000/±2000 dps selectable range.
• Magnetometer: LSM303DLHC 3-axis with ±4800 µT measurement range.
• Interface: I2C communication for microcontroller integration.
• Operating Voltage: 3–5 V DC with onboard voltage regulation.
• Compatibility: Supports 3.3 V and 5 V logic levels and Adafruit library.
• Physical Design: Compact 33 × 23 mm FR4 PCB with 2.54 mm pin spacing.

• Sensor Type | 10-DOF IMU Module (Accelerometer, Gyroscope, Magnetometer)

• Accelerometer | LSM303DLHC, 3-axis, ±2/±4/±8/±16 g selectable

• Gyroscope | L3GD20 / L3GD20H, 3-axis, ±250/±500/±1000/±2000 dps selectable

• Magnetometer | LSM303DLHC, 3-axis, ±4800 µT

• Communication Interface | I2C

• Operating Voltage | 3–5 V DC (onboard LDO voltage regulator)

• Logic Level Compatibility | 3.3 V and 5 V

• Current Consumption | Typical ~10–15 mA (depending on sensor operation)

• Measurement Range | Multi-axis motion and orientation sensing

• Operating Temperature | −40 °C to +85 °C

• PCB Material | FR4, dimensions 33 × 23 mm

• Pin Spacing | 2.54 mm (0.1 inch)

• Library Support | Compatible with Adafruit IMU library for Arduino and embedded platforms
