DC Motor Speed Controller – 10–60V 20A 1200W PWM Regulator

This DC motor speed controller is designed for precise and efficient control of high-power DC motors using PWM technology. It operates within a wide input voltage range of 9–60V and supports currents up to 20A, making it suitable for demanding applications. The module features a high-frequency 25kHz PWM signal for smooth and stable speed regulation with reduced noise. Built for reliable performance, it includes a potentiometer-based control interface for accurate adjustment. Ideal for industrial automation, robotics, and motor-driven systems requiring consistent speed control.

• PWM control technology for efficient speed regulation

• Wide input voltage range 9–60V DC

• High current capability up to 20A

• Continuous current rating up to 18A

• Maximum power handling up to 1200W

• High-frequency operation at 25kHz

• Potentiometer-based speed adjustment

• Smooth speed range from 0% to 100%

• Compact PCB design for easy integration

• Stable output with reduced heat generation

• Simple wiring with screw terminals

• Suitable for brushed DC motors

• Low noise operation due to high PWM frequency

• Input Voltage: 9–60V DC

• Output Voltage: Linear load output

• Output Current: 0–20A

• Maximum Current: 20A

• Continuous Current: 18A

• Maximum Power: 1200W

• Control Frequency: 25kHz

• Speed Regulation Type: PWM (Pulse Width Modulation)

• Speed Control Method: Potentiometer (linear)

• Speed Range: 0–100%

• Potentiometer Hole Diameter: 7mm

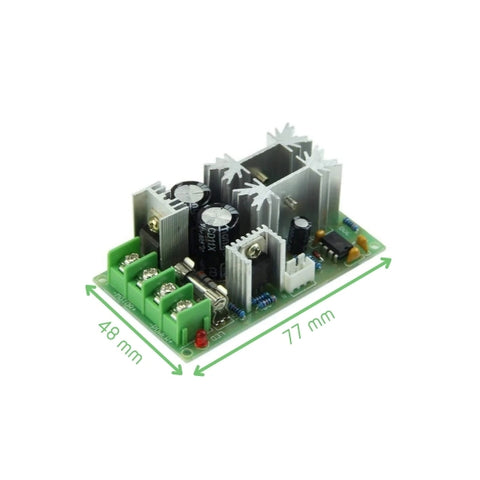

• Module Dimensions: 77 × 45 × 28 mm

• Board Dimensions: 73 × 40 mm

• Motor Type: Brushed DC motor
