Digital Weight Sensor – Aluminum Alloy Load Cell (1kg 5kg 20kg)

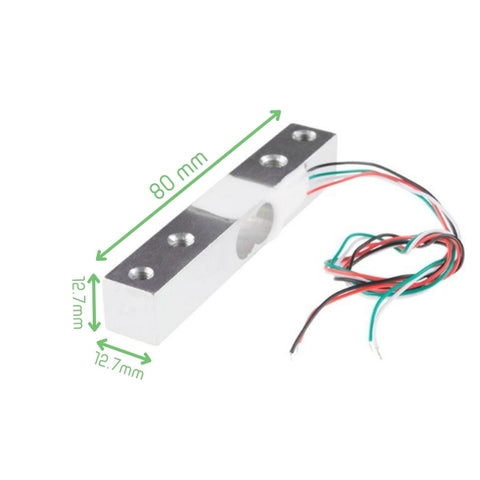

The Digital Weight Sensor Load Cell is a precision strain gauge sensor designed to measure weight or force by converting mechanical pressure into an electrical signal. It features an aluminum-alloy straight bar structure with four strain gauges arranged in a Wheatstone bridge for stable and accurate measurements. The sensor operates with a recommended excitation voltage of 3–12V DC and provides a rated output of 1.0 mV/V. It offers reliable performance for weight detection, force measurement, and load monitoring in embedded systems. Ideal for digital scales, Arduino-based weighing systems, and automation projects. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows: red = power+, green = signal+, black = power-, and white = signal-.

• Aluminum alloy straight bar load cell structure

• Four strain gauges arranged in Wheatstone bridge

• High sensitivity weight and force detection

• Rated output 1.0 mV/V ±0.15 mV/V

• Low creep characteristic 0.03% F.S. per 30 minutes

• Stable zero output ±0.1 mV/V

• Recommended operating voltage 3–12 V DC

• Maximum excitation voltage up to 15 V DC

• High input impedance for accurate signal conditioning

• Suitable for Arduino and HX711 amplifier modules

• Color-coded wiring for easy integration

• Compact design for digital scale systems

• Reliable aluminum construction for long-term use


• Rated output: 1.0mV/V ±0.15mV/V

• Zero output: ±0.1mV/V

• Creep: 0.03% F.S./30min

• Recommended operating voltage: 3–12V DC

• Maximum operating voltage: 15V DC

• Input impedance: 1115Ω ±10%

• Output impedance: 1000Ω ±10%

• Material: Aluminum Alloy

• Wiring configuration: Wheatstone Bridge (4-wire)

• Wire color code: Red VCC+, Black VCC−, Green Signal+, White Signal−

• Capacity options: 1kg / 5kg / 20kg

• Operating temperature: −20°C to 65°C
