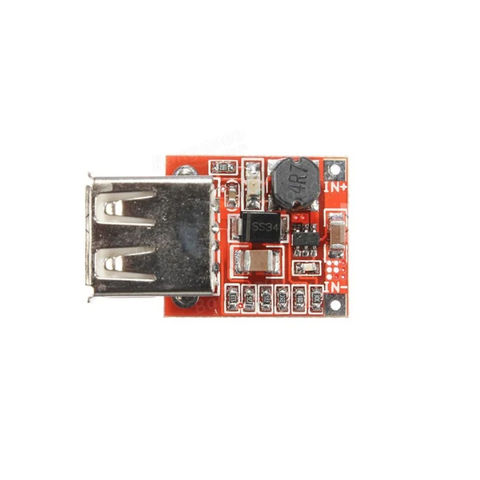

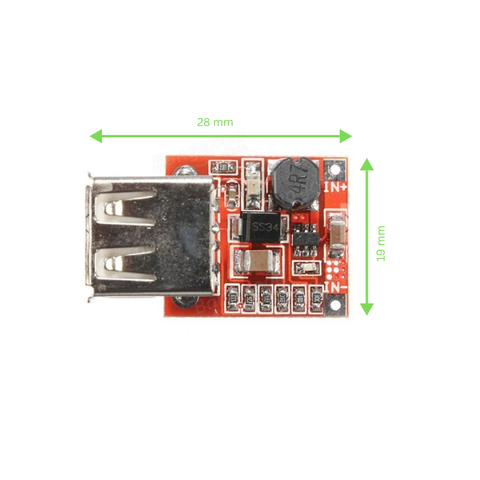

1–5V to 5V DC-DC Boost Converter 1A USB Output Module

The 1–5 V to 5 V DC-DC Boost Converter 1 A USB Output Module is a step-up voltage regulation device designed to convert a low DC input voltage into a stable 5 V DC output with USB interface support. It operates with an input range of 1–5 V DC and provides a regulated output of approximately 5.1–5.2 V DC, suitable for powering USB-compatible loads. The module supports a rated output current of up to 1 A–1.5 A depending on the input source, and operates at a switching frequency of 500 kHz for efficient power conversion. Its compact design allows integration into portable electronic systems and low-voltage battery-powered applications. It is compatible with single-cell lithium battery systems and low-power embedded devices.

• DC-DC Boost Topology: High-efficiency step-up switching converter architecture
• Input Voltage Range: 1–5 V DC
• Output Voltage Regulation: Fixed 5.1–5.2 V DC USB output
• Output Current Capability: Up to 1–1.5 A depending on input source
• Switching Frequency: 500 kHz high-frequency operation for compact design
• USB Output Interface: Standard 5 V USB power output terminal
• Application Compatibility: Single-cell lithium batteries and low-voltage DC systems
• Module Construction: Compact PCB-based boost converter for portable electronics

• Input Voltage Range | 1–5 V DC

• Output Voltage | 5.1–5.2 V DC (regulated USB output)

• Output Current | Up to 1–1.5 A depending on input source

• Conversion Efficiency | High-efficiency boost conversion (application dependent)

• Switching Frequency | 500 kHz high-frequency operation

• Output Interface | Standard USB 5 V output port

• Regulator Type | DC-DC step-up (Boost) switching converter

• Application Compatibility | Single-cell lithium batteries and low-voltage DC systems

• Module Construction | Compact PCB-based boost converter module

• Operating Temperature Range | Industrial-grade operation (-40 °C to +85 °C)
