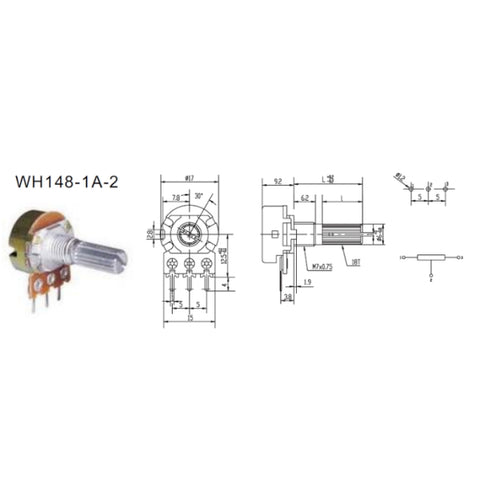

Rotary Potentiometer – Linear Variable Resistor

The Rotary Potentiometer is a linear variable resistor designed for analog voltage control and signal adjustment in electronic circuits. It provides smooth and accurate resistance variation through a rotating shaft mechanism, making it suitable for voltage division, analog input control, and signal tuning applications. With a maximum power rating of 0.5W and operating voltage up to 200V, it delivers stable and reliable performance across a wide range of projects. Commonly used for LED dimming, audio volume control, PWM adjustment, and microcontroller ADC interfacing in embedded and DIY electronics systems.

• Type: Rotary Potentiometer

• Resistance Characteristic: Linear

• Tolerance Accuracy: ±20%

• Maximum Power: 0.5W

• Maximum Voltage: 200V

• Configuration: 3-Pin Variable Resistor

• Adjustment Method: Rotary Shaft

• Mounting Type: Panel Mount Through-Hole

• Output Type: Variable Analog Voltage

• Included Accessories: 1x Mounting Nut

• Application Type: Voltage Divider and Signal Control

• Compatible Platforms: Arduino, ESP32, Raspberry Pi, STM32

• Typical Applications: LED Dimming, Audio Control, PWM Adjustment

• Body Material: Metal and Plastic

• Installation Method: Nut Secured Panel Mount
