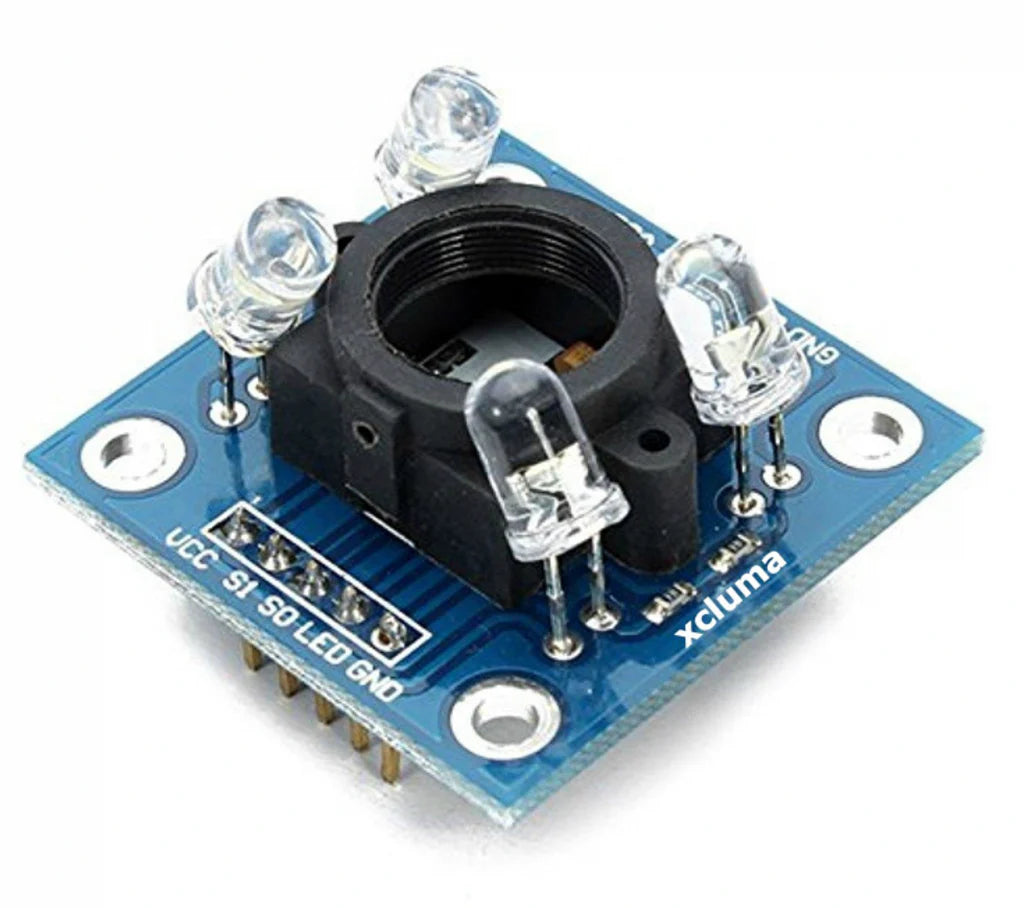

The TCS3200 Color Recognition Module is a precise and easy-to-use sensor that detects and identifies colors using light. It converts color light intensity into frequency signals that can be read by microcontrollers like Arduino, Raspberry Pi, and ESP32. Commonly used in robotics, DIY sorting machines, and educational projects, this module allows systems to "see" and differentiate between colors in real-time.
Features
Built-in TCS3200 Sensor Uses a high-resolution color light-to-frequency converter for accurate color detection.
Programmable Scaling Adjustable output frequency scaling: 100%, 20%, and 2%.
Full RGB Detection Detects red, green, blue, and overall white light.
Easy Integration Compatible with microcontrollers for plug-and-play use in electronics projects.
Compact Module Design Includes onboard LEDs for consistent lighting and accurate readings.
Specifications
Sensor: TCS3200 color light-to-frequency converter
Operating Voltage: 3V – 5V DC
Output Signal: Frequency (square wave)
Detection Range: Full RGB spectrum
Frequency Scaling: 100%, 20%, 2% (selectable via control pins)
Onboard Illumination: 4 white LEDs
Module Dimensions: Approx. 31mm × 24mm
Compatible Boards: Arduino, ESP32, Raspberry Pi, STM32, and others
