PZEM-004T V3.0 AC Energy Meter Module – UART Interface

The PZEM-004T V3.0 is an AC energy monitoring module designed for measuring voltage, current, power, and energy consumption in electrical systems. It operates within an 80–260 VAC range and communicates through a UART interface, making it compatible with platforms such as Arduino, ESP8266, and Raspberry Pi. The module includes a split-core current transformer for non-intrusive current measurement and provides reliable monitoring for power management applications. Its compact PCB design allows easy integration into DIY electronics, smart energy monitoring, and embedded measurement systems.

• AC voltage, current, power, and energy measurement

• Operating voltage range 80–260 VAC

• Rated current measurement up to 100 A

• UART serial communication interface (9600 bps)

• Compatible with Arduino, ESP8266, and Raspberry Pi

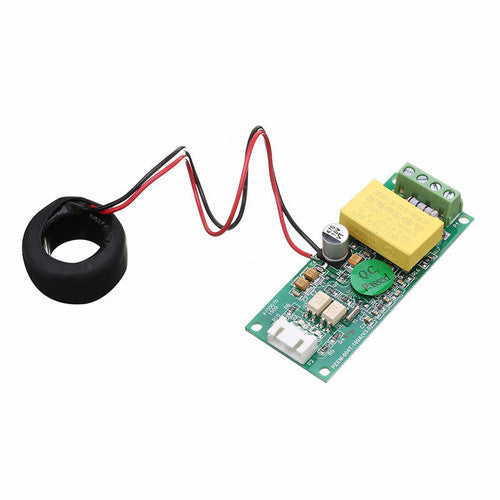

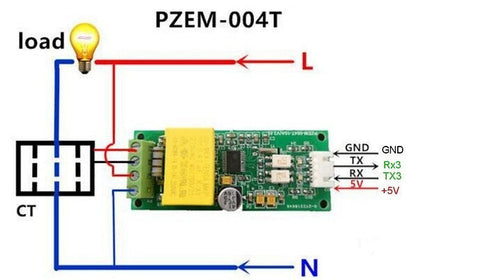

• Split-core current transformer for non-invasive sensing

• High galvanic isolation for measurement safety

• Energy consumption monitoring and data acquisition

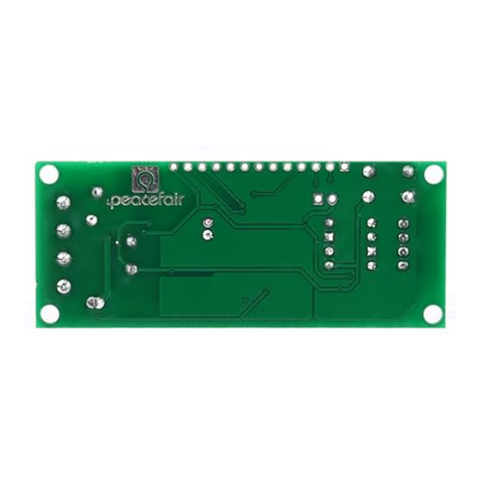

• Compact PCB design for embedded integration

• Suitable for smart energy monitoring systems

• Stable measurement accuracy up to ±1%

• Easy connection with microcontrollers

• Working Voltage: 80–260VAC

• Measurement Voltage Range: 80–260VAC

• Rated Current: 100A

• Maximum Power Measurement: 22000W

• Operating Frequency: 45–65Hz

• Measurement Accuracy: ±1%

• Communication Interface: UART

• Baud Rate: 9600bps

• Supply Voltage: 5V DC

• Current Sensor Type: Split Core Current Transformer

• Current Transformer Diameter: 33mm

• PCB Size: 31mm × 74mm
