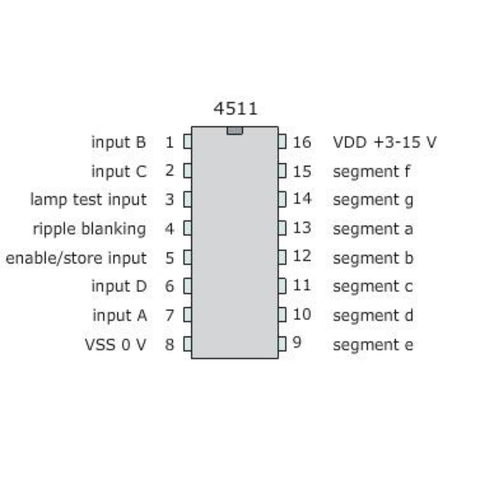

4511 BCD to 7-Segment Decoder/Driver IC

The 4511 is a CMOS integrated circuit that decodes 4-bit BCD inputs and drives a 7-segment display.
It converts binary-coded decimal values into corresponding segment control signals.
The device provides latched, active-high outputs suitable for common-cathode 7-segment displays.
It operates from a wide single-supply voltage range and supports display blanking control.
Typical applications include numeric displays in counters, clocks, measurement equipment, and control panels.

• BCD Input Decoder converting 4-bit BCD to 7-segment outputs

• Latched Output Stage maintaining stable display data

• Active-High Outputs for common-cathode displays

• CMOS Logic Technology supporting low power operation

• Blanking Input Control enabling display suppression

• Lamp Test Function for segment verification

• Model | 4511

• Device Type | BCD to 7-Segment Decoder/Driver IC

• Logic Family | CMOS

• Input Format | 4-Bit BCD

• Display Type | Common-Cathode 7-Segment

• Output Type | Latched, Active-High

• Supply Voltage | 3 V to 15 V

• Output Source Current (Max) | 25 mA per segment

• Propagation Delay (Typical) | 300 ns

• Power Consumption (Typical) | 1 mW

• Operating Temperature Range | −40 °C to 85 °C

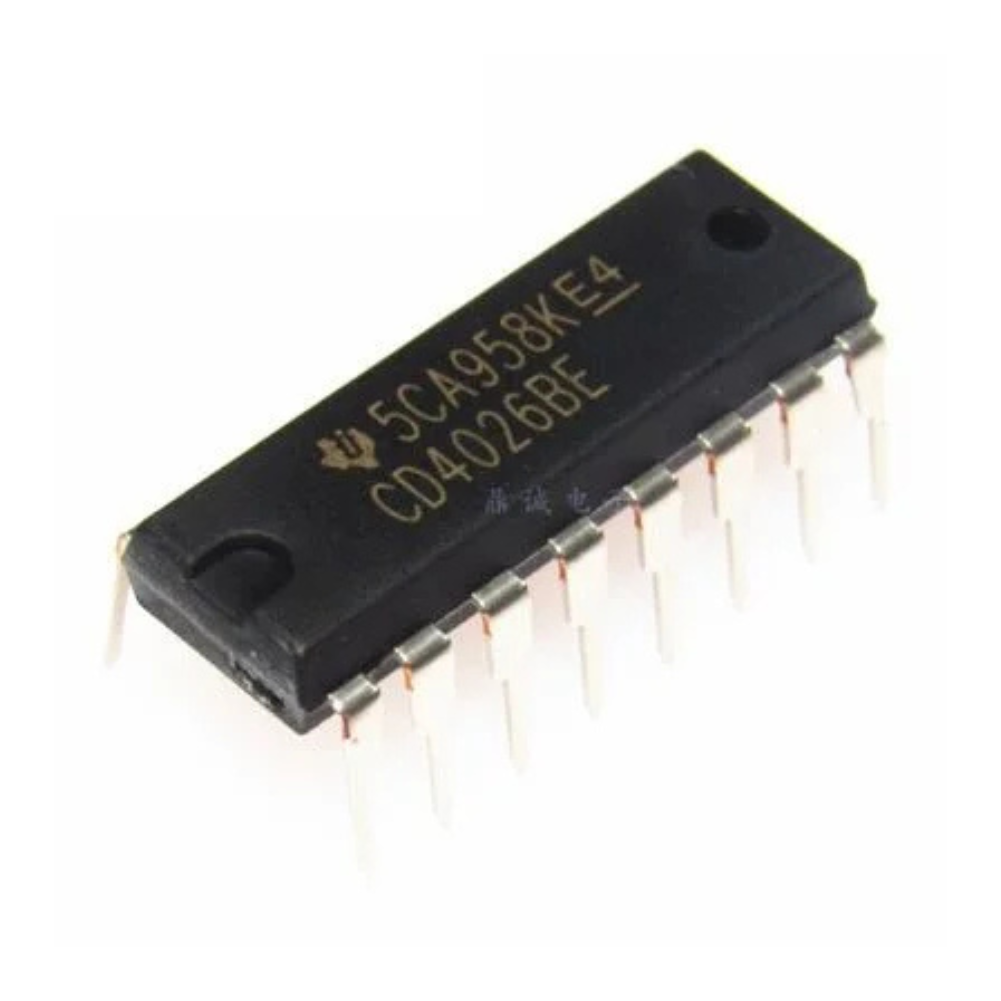

• Package Type | 16-Pin DIP
